Particle Generators | Aerosol Generators for Liquids
Polydisperse
Series AGF | Click here for more details
Liquid nebulizers
- AGF 2.0 | ṁmax ≈ 4 g/h, dpmean ≈ 0,25 µm*
- AGF 2.0 B | ṁmax ≈ 4 g/h, dpmean ≈ 0,25 µm*
- AGF 2.0 D | ṁmax ≈ 4 g/h, dpmean ≈ 0,25 µm* | pressure-resistant up to 10 bar
- AGF 2.0 iP | ṁmax ≈ 2 g/h, dpmean ≈ 0,25 µm* with internal pump
- AGF 10.0 | ṁmax ≈ 20 g/h, dpmean ≈ 0,4 µm*
- AGF 10.0 D | ṁmax ≈ 20 g/h, dpmean ≈ 0,4 µm* | pressure-resistant up to 10 bar
- UGF 2000 | ṁmax ≈ 1,5 g/h, dpmean ≈ 0,25 µm*
Series PLG | Click here for more details
Liquid nebulizers
- PLG 2000 | ṁmax ≈ 20 g/h, dpmean ≈ 0,4 µm*
- PLG 2000 H | ṁmax ≈ 20 g/h, dpmean ≈ 0,4 µm* | with heating
- PLG 2000 HS | ṁmax ≈ 20 g/h, dpmean ≈ 0,4 µm* | with heating and automatic refill
- PLG 2100 | ṁmax ≈ 100 g/h, dpmean ≈ 1,5 µm* | with heating
- PLG 2100 S | ṁmax ≈ 100 g/h, dpmean ≈ 1,5 µm* | with heating and automatic refill
- PLG 2300 | ṁmax ≈ 300 g/h, dpmean ≈ 1,5 µm* | with heating
- PLG 2300 S | ṁmax ≈ 300 g/h, dpmean ≈ 1,5 µm* | with heating and automatic refill
*Particle material DEHS for size and quantity details
Monodisperse
- MAG 3000 | Monodisperse and aerosol generator | dpmax ≈ 0,2 - 8 µm
Aerosol generators for special applications
- RAS 3000

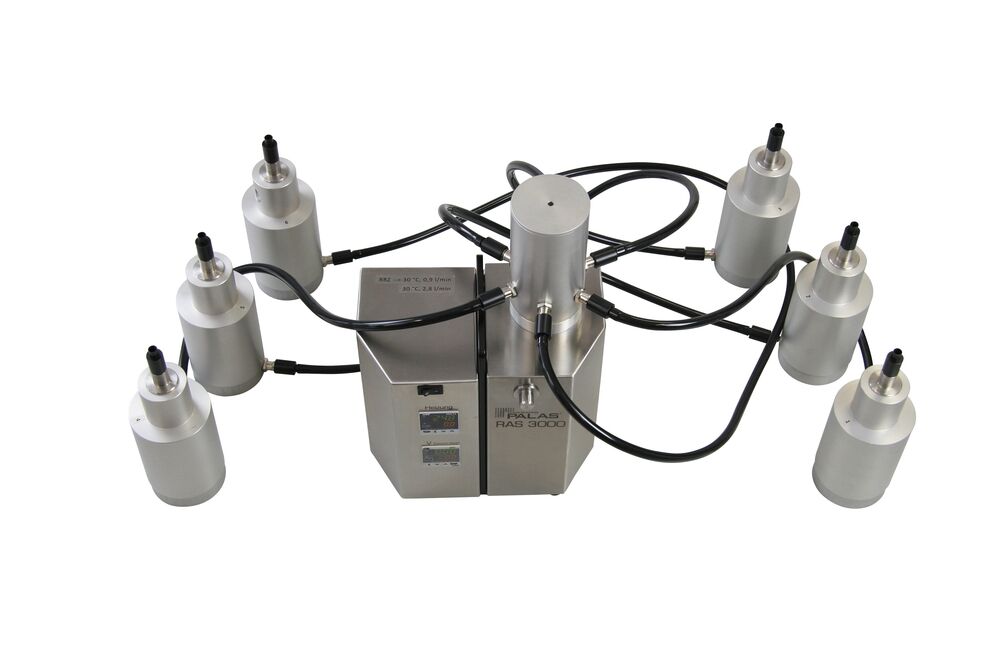

Reference Aerosol System for protection degree determination - RAS 3000 C
Reference Aerosol System for
the simultaneous calibration of up to six OPCs and for protection degree determination - Aerosol generator for the generation of test bio-aerosols from solid particles (e. g. pollen) or liquids and suspensions
