Particle Generators | Aerosol Generators for Solid Particles

Aerosols from powders

Series RBG | Click here for more details

Powder dispersion generator with brush

• RBG 1000 | ṁ_min ≈ 40 mg/h, ṁ_max ≈ 430 g/h**
• RBG 1000 D | ṁ_min ≈ 40 mg/h, ṁ_max ≈ 220 g/h** | pressure-resistant up to 3 bar
• RBG 1000 L | ṁ_min ≈ 80 mg/h, ṁ_max ≈ 107 g/h**
• RBG 1000 G | ṁ_min ≈ 40 mg/h, ṁ_max ≈ 185 g/h**
• RBG 1000 GD | ṁ_min ≈ 40 mg/h, ṁ_max ≈ 95 g/h** | pressure-resistant up to 3 bar
• RBG 2000 | ṁ_min ≈ 200 mg/h, ṁ_max ≈ 562 g/h**
• RBG 2000 D | ṁ_min ≈ 200 mg/h, ṁ_max ≈ 430 g/h** | pressure-resistant up to 3 bar

Series BEG | Click here for more details

Powder dispersion generator with belt

• BEG 1000 | ṁ_min ≈ 8.000 mg/h, ṁ_max ≈ 6.000 g/h**
• BEG 2000 | with automatic mass flow control

• BEG 3000 | with automatic mass flow control and automatic refill unit


** Fill or bulk density 1 g/cm³

Aerosols from solutions and suspensions

Aerosol generator with binary nozzle and drying system

• AGK 2000 | ṁ_min und ṁ_max depending on the concentration of the solution

Nanoparticles from metallically conducting solid particles

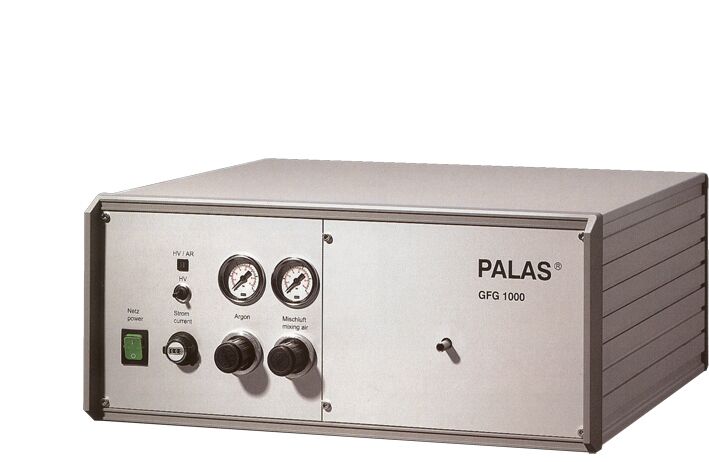

Series GFG

Spark generator

• GFG 1000 | ṁ_min ≈ 0,07 mg/h, ṁ_max ≈ 6 mg/h** | argon operation
• GFG 3000 | ṁ_min ≈ 0,07 mg/h, ṁ_max ≈ 6 mg/h** | argon operation

Series DNP

Spark generator

• DNP 2000 | ṁ_min ≈ 0,06 mg/h, ṁ_max ≈ 7 mg/h** I nitrogen operation
• DNP 3000 | ṁ_min ≈ 0,06 mg/h, ṁ_max ≈ 7 mg/h** I nitrogen operation

Soot generation from combustion

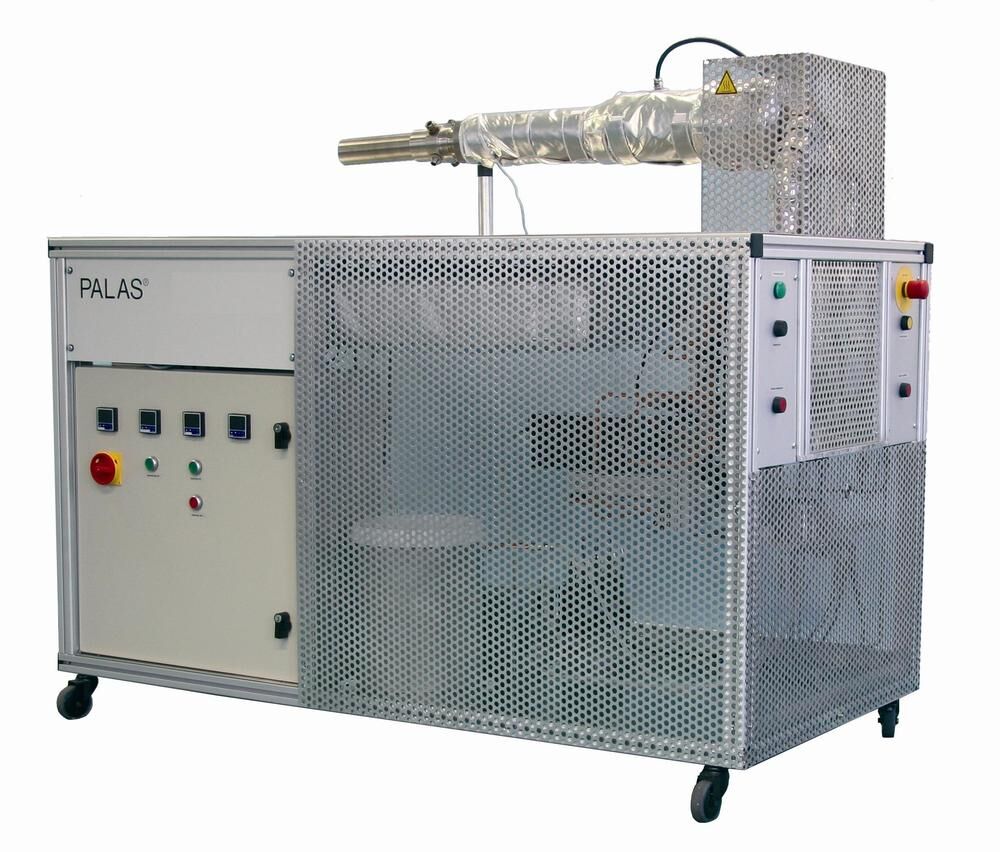

Series DSP

Soot generator

• DSP 3000 | ṁ_min ≈ 50 mg/h, ṁ_max ≈ 3.000 mg/h**
• DSP 3000 H | ṁ_min ≈ 50 mg/h, ṁ_max ≈ 3.000 mg/h** heating up to 300°C
• DSP 3010

Aerosol generators for special applications

• ASHRAE generator | Dust disperser according to ASHRAE 52.2
• Aerosol generator for the generation of test bio-aerosols from solid particles (e. g. pollen) or liquids and suspensions

Please contact us for further information.
