LFT 3000

​​Automatic leakage scantest for HEPA/ULPA Filter in accordance with ISO 29463-4 and -5​

To ensure filter quality, ISO 29463-1 requires that all HEPA /ULPA filters with an efficiency of 99.95% or higher (ISO 35H/H13) be tested for the following:

  • local efficiency according to ISO 29463-4
  • overall efficiency according to ISO 29463-5

The LFT 3000 combines the requirements from the ISO standard with simple operations and a fast test run. It operates computer-controlled with appropriate software to perform the test and to detect possible leakage points easily and quickly.

In addition to the local filter efficiency, the overall efficiency is also part of the test report.

标准和证书

国家标准和国际标准

ISO 29463-4 ISO 29463-5

工作原理
优势

具体的益处

  • ​​​Quick and accurate scanning
  • ​Automatic test report

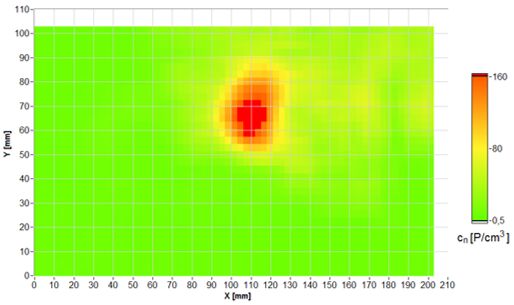

  • ​Clear leak detection​
  • ​Easy installation of filter elements
  • ​Adapters for various filter dimensions
应用

针对众多行业的个性化解决方案

  • ​​Classification of HEPA/ULPA filters
  • ​Filter test according to ISO 29463-4/5
您有其他问题吗?
请随时与我们联系。
技术数据

详细信息

Volume flow
100–1,200 m3/h
Power supply
400 V, 50 Hz
Differential pressure measurement
Up to 1,200 Pa
Compressed air supply
6 bar
Size filter element
300 x 300–600 x 1,200 mm
下载

关于LFT 3000的更多信息

Brief Description

Brief product description in two-pages as PDF


Product Description

Detailed product description as PDF
