DEMC 2000

Differential electrical mobility classifier from 4 – 1400 nm

The DEMC size classifier (as defined in ISO 15900) selects aerosol particles based on their electrical mobility and directs them to the outlet. It is also often referred to as a DMA.

The size classifier is suitable in combination with condensation particle counters from the Palas UF-CPC , ENVI-CPC series or electrometers (Charme®) for measuring the number concentrations of different aerosols in scientific and regulatory environments. Alternatively, columns and particle counters from other manufacturers can also be integrated.

标准和证书

国家标准和国际标准

ISO 15900:2010 CEN/TS 17434:2020

工作原理
优势

具体的益处

  • The user is able to select any size within the defined size range.
  • The DEMC can be connected to many counters to form an SMPS.
  • Continuous and fast-scanning principle of measurement

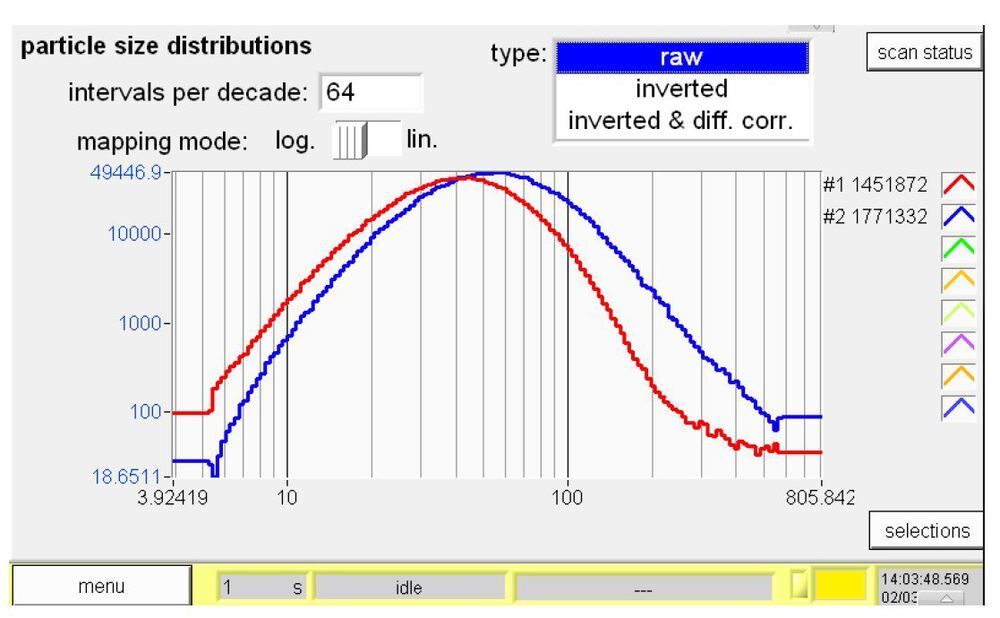

  • Graphic display of measurement values
  • Intuitive operation using 7" touchscreen and GUI
  • Integrated data logger
  • Low maintenance
  • Reliable function
  • Reduces your operating expenses
应用

针对众多行业的个性化解决方案

  • Calibration of condensation particle counters (CPC)
  • Monodisperse particle source
  • System component of an SMPS
您有其他问题吗?
请随时与我们联系。
技术数据

详细信息

Volume flow (sheath air)
2.5 – 14 l/min
Size channels
Max. 256 (128/decade)
User interface
Touchscreen, 800 • 480 pixel, 7" (17.78 cm)
Data logger storage
4 GB
软件
PDAnalyze
Classifying range (size)
4 – 1,489 nm
Installation conditions
+5 – +40 °C (control unit)
Impactor
Nozzle for 3 different cut-offs
Adjustment range (voltage)
1 – 10,000 V
Data Management
Prepared for connection to the Palas Cloud MyAtmosphere ("MyAtmosphere-ready"); internet access and separate registration required.MyAtmosphere terms and conditions of use apply.
下载

关于DEMC 2000的更多信息

Brief Description

Brief product description in two-pages as PDF


Product Description

Detailed product description as PDF
