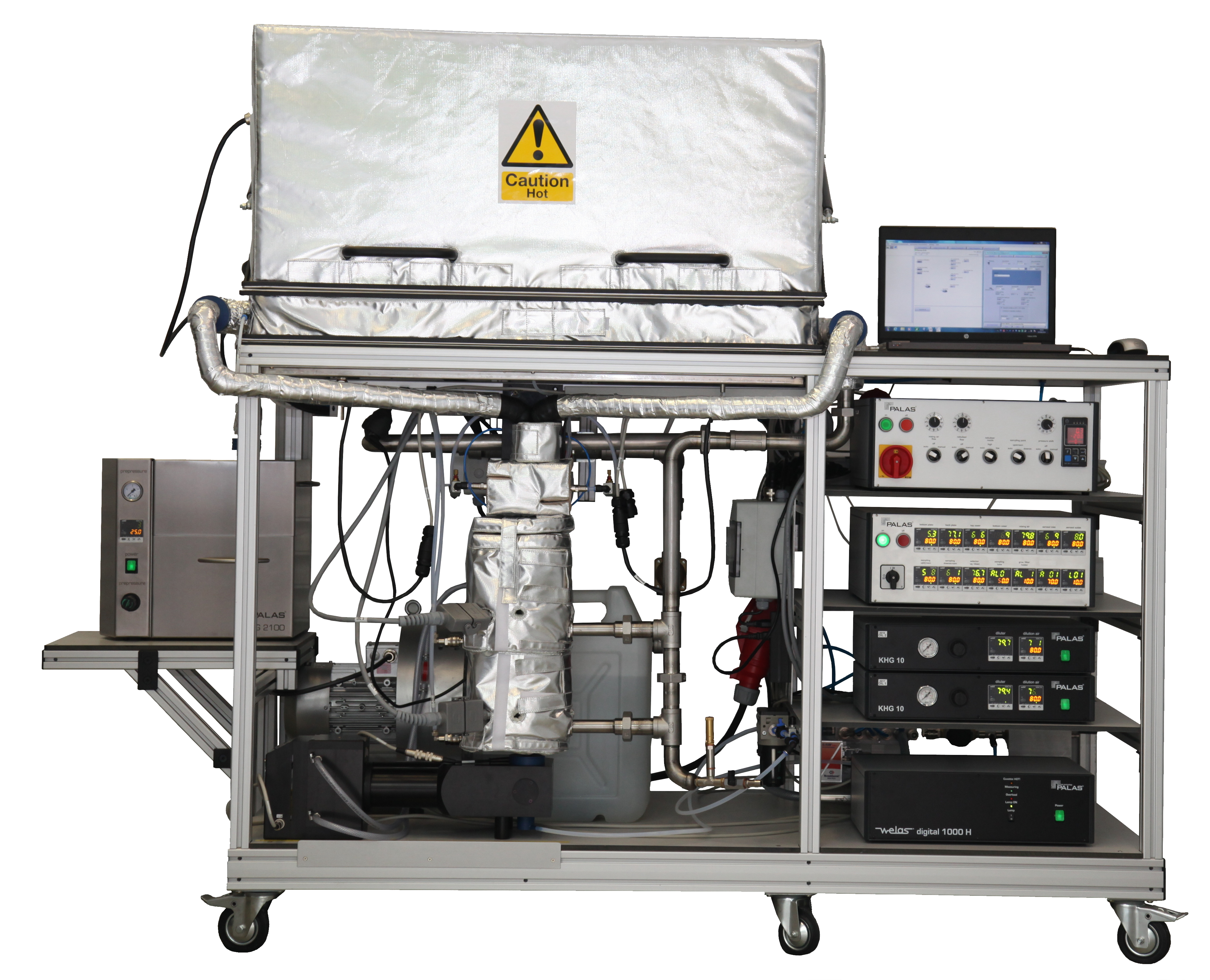

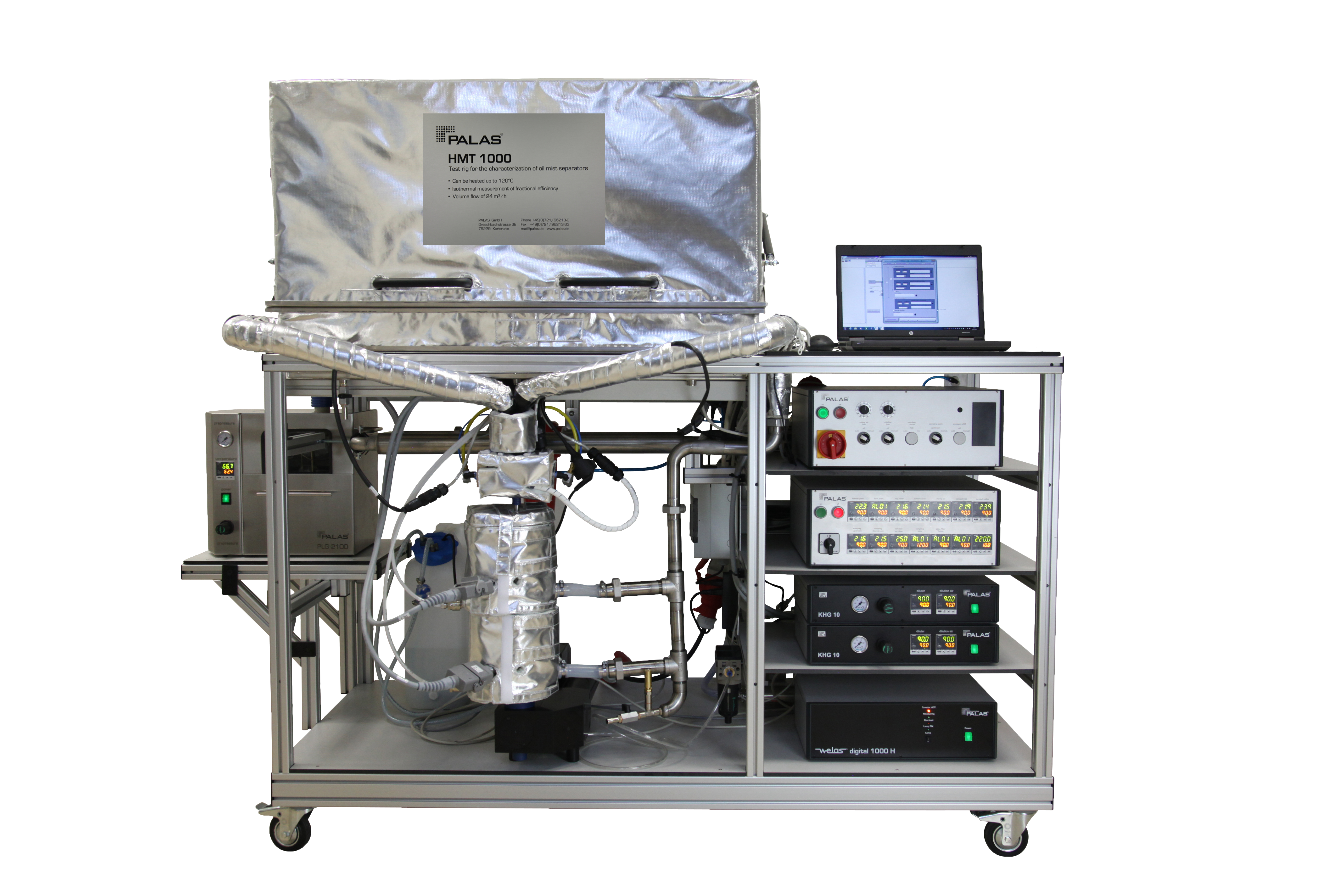

HMT 1000

用于油雾分离器的可加热模块化测试系统,符合 ISO 17536 标准

With the modular test system HMT 1000, oil separators (e.g., for the separation of blow-by aerosols in internal combustion engines or the separation of oil mist downstream of compressors) are quickly and accurately characterized and, in particular, successfully tested under practically relevant conditions through isothermal particle measurements up to 120°C:

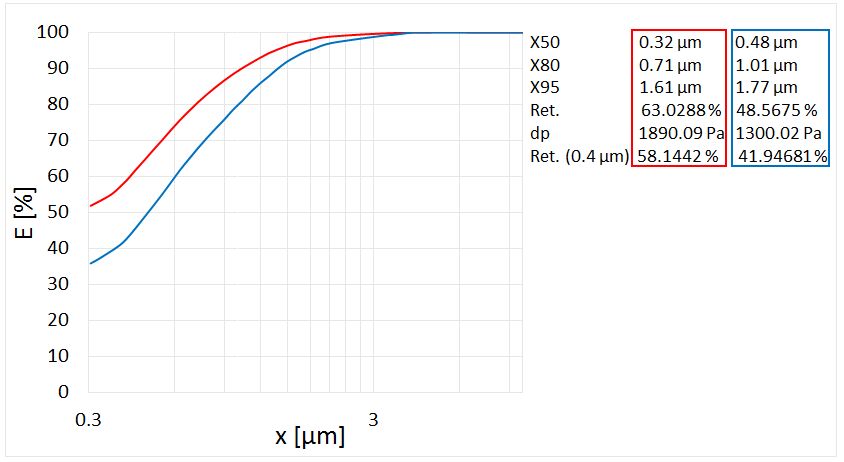

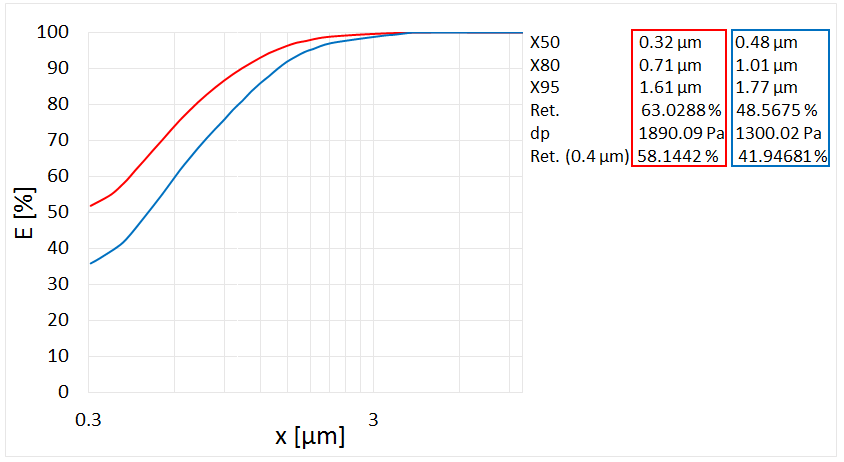

  • Fraction separation efficiency
  • Burden/hold time
  • Total separation efficiency / gravimetric analysis
  • Pressure loss
标准和证书

国家标准和国际标准

ISO 17536

工作原理
优势

具体的益处

  • Measurement and evaluation of fraction separation efficiency and burden
  • Isothermal and isobaric measurement
  • All components can be heated to 120°C
  • High reproducibility of the testing method
  • Internationally comparable measurement results thanks to the widespread use of the measurement system
  • Cleaning and calibration can be performed autonomously by the customer
  • Easy to operate, even untrained personnel can be instructed quickly in the use of the equipment
  • Modular layout offers increased flexibility
  • Validation of the clear function of individual components and the overall system during pre-delivery acceptance testing and upon delivery
  • Short set-up times, extremely low-maintenance
  • The unit will reduce your operating costs
应用领域

为各行业提供定制化解决方案

  • Quality assurance for oil separators
  • New and further development of oil separators, e.g. coalescence separators, cyclonic separators and other inertia separators, electrofilters and filter combinations, e.g. for
    • Blow-by aerosols
    • Oil mist downstream of compressors
    • Cooling lubricants on machine tools
    • Aerosols for minimal quantity lubrication
您有其他问题吗?
请随时与我们联系。
技术数据

详细信息

测量范围 (数量浓度)
Up to 107 particles/cm3 with LDD100 H
测量范围 (粒径)
0.18 – 40 µm
体积流量

1 – 25 Nm3/h, 1 – 85 Nm3/h (others on request)
Differential pressure measurement
0 – 5,000 Pa (others on request)
Compressed air supply
6 – 8 bar
Dimensions
Approx. 1,600 • 2,000 • 800 mm (H • W • D)
下载

关于HMT 1000的更多信息

Brief Description

Brief product description in two-pages as PDF


Product Description

Detailed product description as PDF

购物车

您的个性化配置

组件


(Art-No: 1333-001keine)
0,00


(Art-No: 1463keine) - MFC 150 MassFlowController
0,00


(Art-No: 404keine) - PLG 2100
0,00


(Art-No: 6079keine) - Promo 1000 Control Unit
0,00


(Art-No: 431keine) - Aerosol sensor welas® 1100 HP
0,00


(Art-No: 5126keine) - LDD 100 H
0,00


(Art-No: 713keine) - Optional instruction at Palas
0,00


(Art-No: 5915keine) - System Calibration
0,00

0,00

All prices without VAT. Price verification reserved.

Total price (net)
