MFP 2000

快速且经济地对含粉尘、油或盐的‌平面滤材‌进行质量控制与开发,起测粒径为 200 nm

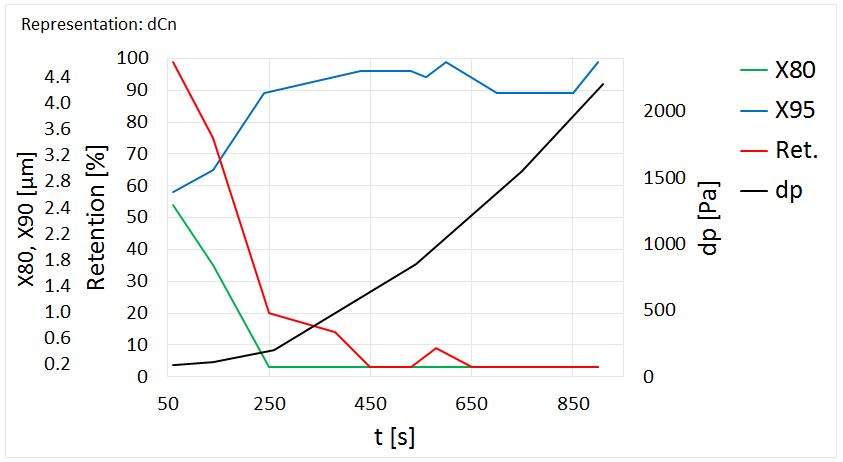

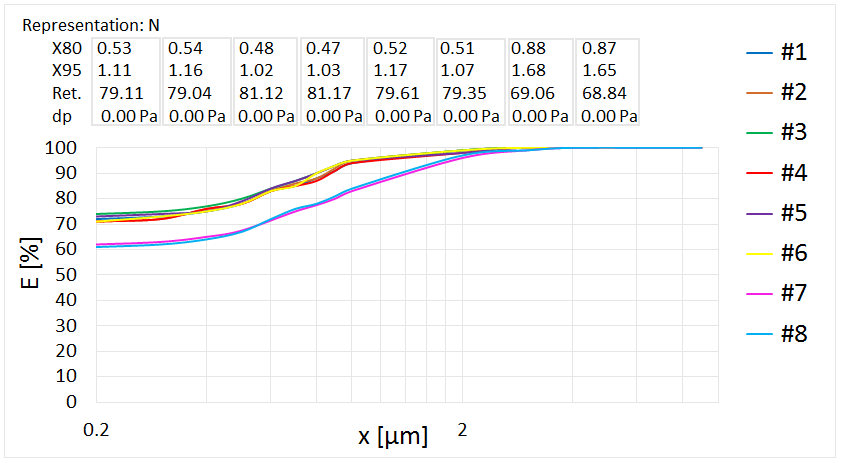

MFP 滤料测试台是一种模块化过滤测试系统,适用于平面滤材和小型微型滤芯。MFP 2000 可在极短时间内可靠且经济地测定以下参数:无尘涂层滤料的压力损失曲线、分级分离效率,以及在负载施加过程中的容尘量与分级分离效率。

该系统的气溶胶发生器更换便捷,且与整体系统协调匹配,因而能够快速简便地使用不同测试气溶胶完成过滤测试。借助光散射粒径谱仪 Promo® 2000,可确保清晰可靠地测定气溶胶浓度和粒径,从而精确计算分级分离效率。

通过高度自动化的测试流程设置、明确界定的独立组件以及滤料测试软件 FTControl 中可个性化调整的序列程序,共同保证了测量结果的高度可靠性。

标准和证书

国家标准和国际标准

ISO 11155-1 ISO 5011 ISO 16890 EN 1822-3 CEN EN 143

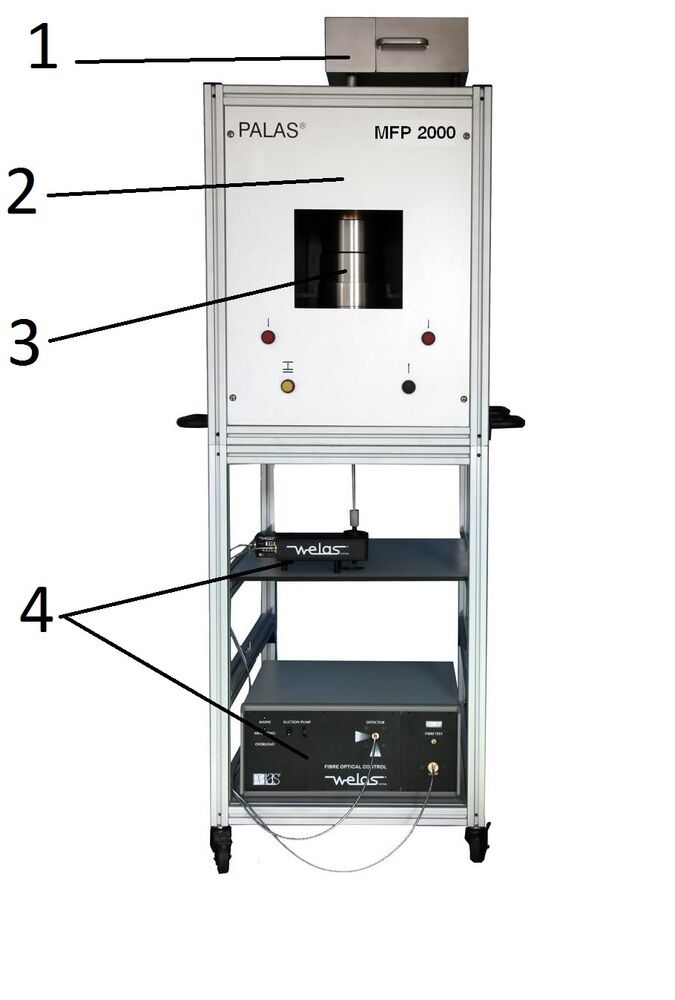

工作原理
优势

具体的益处

  • Particle size measurements from 0.2 µm
  • Internationally comparable measurement results
  • High reproducibility of the testing method
  • Easy use of different test aerosols, e.g. SAE Fine and Coarse, NaCl/KCl, DEHS
  • Sequence programs for pressure loss measurements, measurements of fraction separation efficiency and burden measurements
  • Short set-up times
  • Cleaning and calibration can be performed by the customer
  • Easy use of the measurement technology components – even in other applications
  • Mobile setup, easy to move on castors
  • Validation of the clear function of individual components and the overall system during pre-delivery acceptance testing and upon delivery
  • Low-maintenance
应用领域

为各行业提供定制化解决方案

  • 适用于过滤介质与小型微型滤芯
  • 用于产品开发及生产过程监控
  • ISO 11155-1(车厢空气过滤器)
  • ISO 5011(发动机预进气过滤器)
  • ISO 16890(室内空气过滤器)
  • EN 1822-3(HEPA 高效过滤器)
  • CEN EN 143 及各版本相关标准
您有其他问题吗?
请随时与我们联系。
技术数据

详细信息

气溶胶
Dusts (e.g., SAE dusts), salts (e.g., NaCl, KCl), liquid aerosols (e.g., DEHS)
滤材测试面积
100 cm2
测量范围 (粒径)
0.2 – 40 µm
测量范围 (质量)
Up to 1,000 mg/m³ (depending on the version)
体积流量
1 – 35 m3/h - pressurized operation
电源
115 – 230 V, 50/60 Hz
Differential pressure measurement
0 – 1,200 Pa selectable, 0 – 2,500 Pa selectable, 0 – 5,000 Pa selectable
Inflow velocity
5 cm/s – 1 m/s (others on request)
Compressed air supply
6 – 8 bar
Dimensions
1,800 • 600 • 900 mm (H • W • D)
下载

关于MFP 2000的更多信息

Brief Description

Brief product description in two-pages as PDF


Product Description

Detailed product description as PDF
