PLG 2100

Aerosol generator for the defined atomization of oils, e.g. for blow-by applications

The PLG 2100 uses a nozzle system developed by Palas . Depending on the application, a special nozzle that is able to be heated to 120°C is used in order to enable quick and reproducible adjustment to the desired particle size distribution and concentration. Among other uses, the PLG 2100 is used on the HMT 1000 filter test rig to test oil nebulizers in order to disperse a corresponding motor oil, e.g. 10w-40.

The heating of the oil changes the number concentration, as well as particle size distribution, of the material to be dispersed due to a change in the viscosity. This additionally enables materials to be dispersed which are unable to be nebulized at cooler temperatures due to their viscosity. The PLG 2100 is equipped with two replaceable nozzles: Nozzle 1 for low mass flows of up to 20 g/h max. (depending on the aerosol substance in use), nozzle 2 for high mass flows of up to 100 g/h max. (depending on the aerosol substance in use).

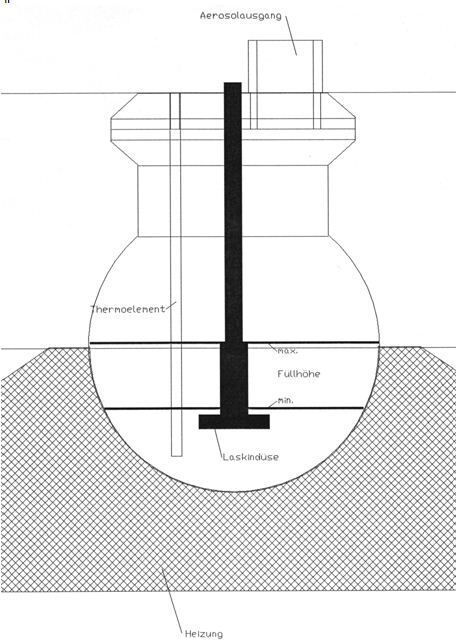

工作原理
优势

具体的益处

  • Excellent short-term and long-term dosing constancy
  • Heatable
  • Best reproducibility with respect to particle size distribution and particle concentration
  • Large mass volume range (very low and very high)
  • Long dosing time over several days with automatic refilling (optional)
  • Robust design (optionally resistant against chemically aggressive liquids)
  • Compact and light
  • Easy to operate, proven in industrial applications
应用

针对众多行业的个性化解决方案

  • Filter industry/oil separators
    • Determination of separation efficiency
    • Determination of fractional separation efficiency
    • Loading test
  • Test of cooling lubricant separators
  • Used on the HMT 1000 filter test rig to test oil nebulizers
  • Comparison of particle measurement devices
  • Tracer particles
  • Flow visualization
您有其他问题吗?
请随时与我们联系。
技术数据

详细信息

Volume flow
3 – 110 l/min
Mass flow (particles)
< 100 g/h (Weißöl)
Filling quantity
1,000 ml
Power supply
115 – 230 V, 50/60 Hz
Aerosol outlet connection
Øinside = 32 mm, Øoutside = 42 mm
Mean particle diameter (number)
1.5 µm
Dimensions
440 • 380 • 380 mm
(H • W • D)
Weight
Approx. 16 kg
Special features
Heatable up to 120°C
下载

关于PLG 2100的更多信息

Brief Description

Brief product description in two-pages as PDF


Product Description

Detailed product description as PDF
