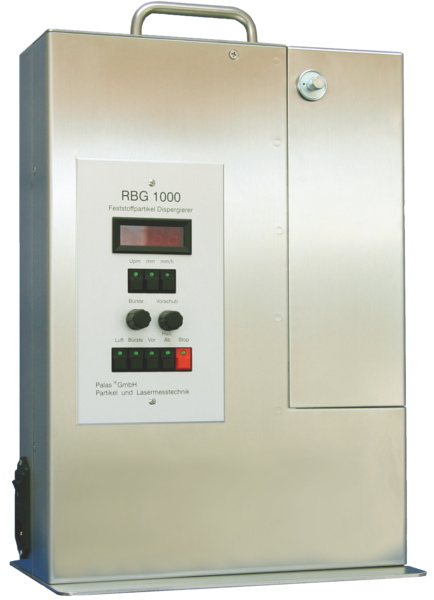

RBG 1000

RBG 1000: Test- und Prüfaerosole aus Pulvern, Pollen und Sporen. 40 mg/h - 430 g/h. Für Forschung, Entwicklung, Qualitätssicherung und Kalibrierung.
生成粉末、花粉及孢子测试气溶胶,质量流量范围约 40 mg/h – 430 g/h

RBG 系统能够分散可靠的非粘性粉末,例如矿物粉尘、活性药物成分、花粉等,其粒径范围小于 100 µm,并包含小于 100 nm 的细颗粒组分。此外,对于黑板粉笔等整体固体材料,该系统也能以较高的投料均匀性实现精细分散。该投料与分散系统的独特优势在于,RBG 1000 可在约 10 mg/h 至约 430 g/h 的质量流量范围内,实现高水平的投料均匀性分散。

可选配置:

  • 耐压可高达 3 bar
  • 低压运行压力可从 300 mbar(绝对压力)起,支持氮气操作
型号变体

更多可能性

工作原理

参考文献

出版物

  • Kuhli, M.; Weiß, M.; Steckel, H.: A New Approach to Characterise Pharmaceutical Aerosols: Measurement of Aerosol from a Single Dose Aqueous Inhaler with an Optical Particle Counter.; European Journal of Pharmaceutical Sciences,39
  • Wang, X.; Camacho, R.; Xu, X.; et al.: Aerosol deposition technology and its applications in batteries; NanoMaterial Science 阅读更多
  • Xin, Bingying; Li Yizeh; et al.: Process optimisation of alumina coatings by modification of powder characteristics in the aerosol deposition method; Journal of the European Ceramic Society 阅读更多
  • Younis, A.; Louzazni, M.; et al.: Systematic indoor experimental practices for simulating and investigating dust deposition effects on photovoltaic surfaces: A review; Energy Strategy Reviews Vol. 51
  • Murray, S.; Sarracino, A.; McPherson S.; et al.: Validation of adhesion mechanisms in ball milled Al2O3 aerosol deposition through laser induced particle impact testing; preprints.org 阅读更多
优势

具体的益处

  • 短期与长期投料稳定性高
  • 可分散几乎所有非粘性粉尘
  • 不同固体物料储罐与分散盖更换简便
  • 质量流量易于测定与调节
  • 支持脉冲模式运行
  • 设备易于清洁
  • 操作快捷简便
  • 运行稳定可靠
  • 维护需求少
  • 有助于降低运行成本
应用领域

为各行业提供定制化解决方案

  • 过滤器行业:
    • 分级分离效率测定
    • 总分离效率测定
    • 长期粉尘负荷测试
    • 过滤介质与成品过滤器
    • 除尘过滤器
    • 真空吸尘器及其过滤器
    • 汽车座舱过滤器
    • 发动机空气过滤器
  • 颗粒物测量设备校准
  • 流动可视化
  • 吸入测试
  • LDA、PIV 等示踪粒子
  • 表面涂层
您有其他问题吗?
请随时与我们联系。
技术数据

详细信息

粒径范围
0.1 – 100 µm
颗粒物最大数量浓度
Ca. 107 particles/cm3
体积流量
0.5 – 5.0 m3/h
Mass flow (particles)
0.04 – 430 g/h (with an assumed compacted density of 1 g/cm3)
Filling height
70 mm
Filling quantity
2.7 g (reservoir Ø = 7 mm), 5.5 g (reservoir Ø = 10 mm), 10.8 g (reservoir Ø
= 14 mm), 22 g (reservoir Ø = 20 mm), 43 g (reservoir Ø = 28 mm)
电源
115 – 230 V, 50/60 Hz
Particle material
Non-cohesive powders and bulks
Dosing time
Several hours nonstop
Pre-pressure
4 – 8 bar
Carrier/dispersion gas
Random (generally air)
Maximum counter pressure
0.2 barg
Compressed air connection
Quick coupling
Feed rate
5 – 700 mm/h
Reservoir inner diameter
7, 10, 14, 20, 28 mm
Aerosol outlet connection
Dispersion cover type A: Øinside= 5 mm, Øoutside = 8 mmDispersion cover type B: Øinside= 3.6 mm, Øoutside = 6 mmDispersion cover type: Øinside= 2.5 mm, Øoutside = 6 mm
Dispergierdeckel
Type A, type B, type C, type D
Dimensions
465 • 320 • 200 mm (H • W • D)
重量
Approx. 19 kg
下载

关于RBG 1000的更多信息

Brief Description

Brief product description in two-pages as PDF


Product Description

Detailed product description as PDF
