Resp-Aer-Meter Scientific

The Resp-Aer-Meter Scientific offers a wide range of additional information and data and can be used for scientific applications, for example in the medical field

Downloads

Resp-Aer-Meter

Resp-Aer-Meter Scientific

The Resp-Aer-Meter Scientific offers a wide range of additional information and data and can be used for scientific applications, for example in the medical field

Still have questions?

Description

Besides the detection of a potential superspreader, the Resp-Aer-Meter Scientific offers access to a wide range of other measurement data, such as number of particles, size and size distribution, time course, measurement times, and much more. In addition, many parameters, such as the measurement duration or limit values can be set individually.

The Breath Viewer post-processing tool makes it easy to perform a comprehensive statistical analysis of the data from several different measurements. It displays them graphically and allows filtering and sorting as well as subsequent changes to certain evaluation parameters. This also enables adaptations to new variants and diseases.

2111_PA_Grafiken_Seite 07_01.png (2)

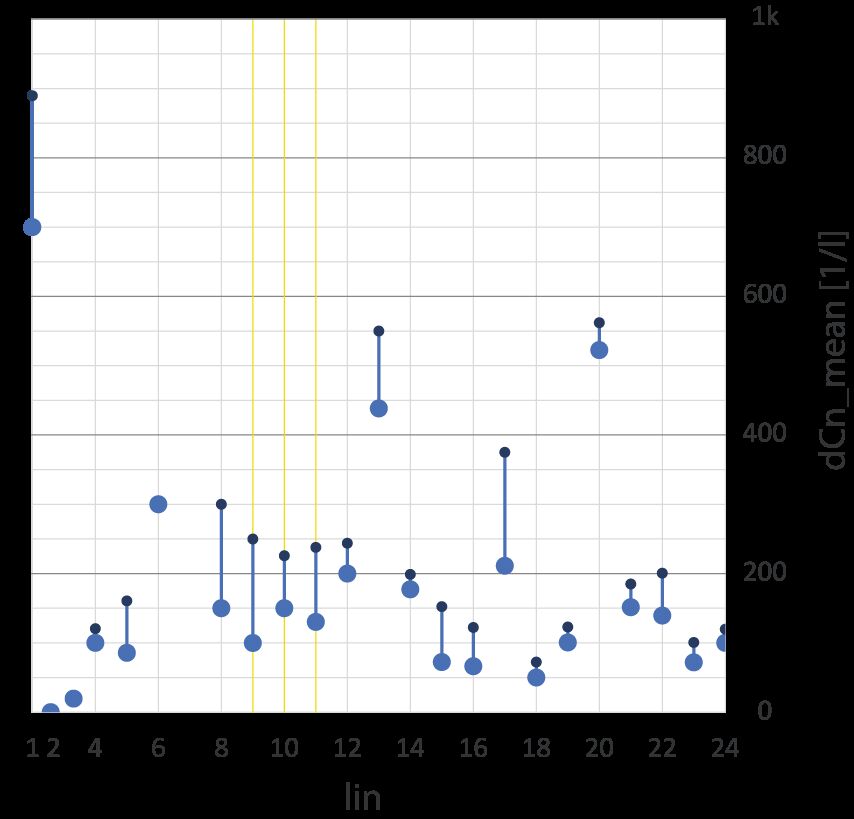

Fig. 1: Comparison of different measurements
2111_PA_Grafiken_Seite 07_02.png (2)

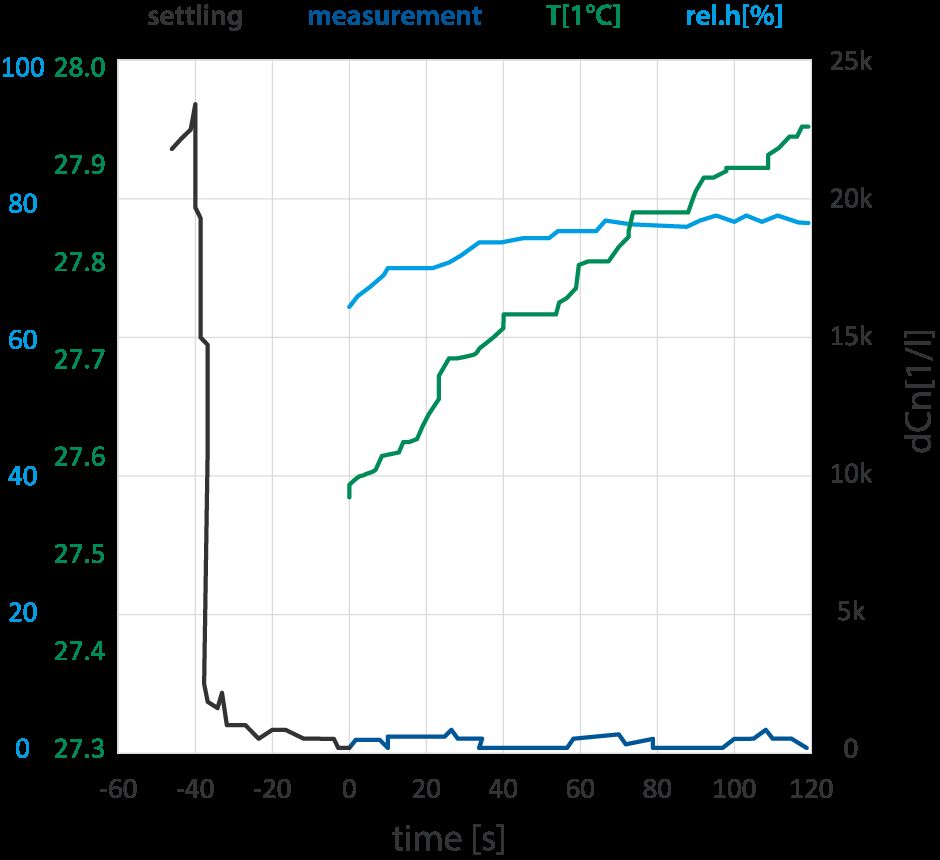

Fig. 2: Time representation of a measured value
2111_PA_Grafiken_Seite 07_03-01.png (2)

Fig. 3: Size distributions

Benefits

  • So-called "superemitters" can be identified in 30s thanks to a high number of particles
  • Fast differentiation between infectious and less infectious Covid-19 carriers
  • Measurement of the aerosol concentration and aerosol size in exhaled air
  • Detection of particles from 145 nm to 10 µm
  • Highest resolution, especially in the virus size range from approx. 145 nm to 1 µm
  • Immediate evaluation and documentation of the measurement result

Datasheet

Measuring principle Optical light-scattering
Measurement range (number CN) 0 – 20,000 particles/cm³
Measurement range (size) 0.15 – 10 µm
Volume flow 9.5 l/min
Data acquisition Digital, 20 MHz processor, 256 raw data channels
Power consumption Approx. 200 W
User interface Touchscreen, 800 • 480 pixel, 7" (17.78 cm)

Applications

  • Medical-scientific research, to answer questions such as
    • Do infectious respiratory diseases differ by exhaled particle size distribution?
    • Is an increased particle concentration in the breath due to a specific particle size range?
    • How do disease variations or personal characteristics (age, BMI, previous diseases...) influence the outcome?

Downloads

Brief Description
Brief product description in two-pages as PDF
Product Description
Detailed product description as PDF
Palas Video Resp-Aer-Meter
Video (329 MByte)
