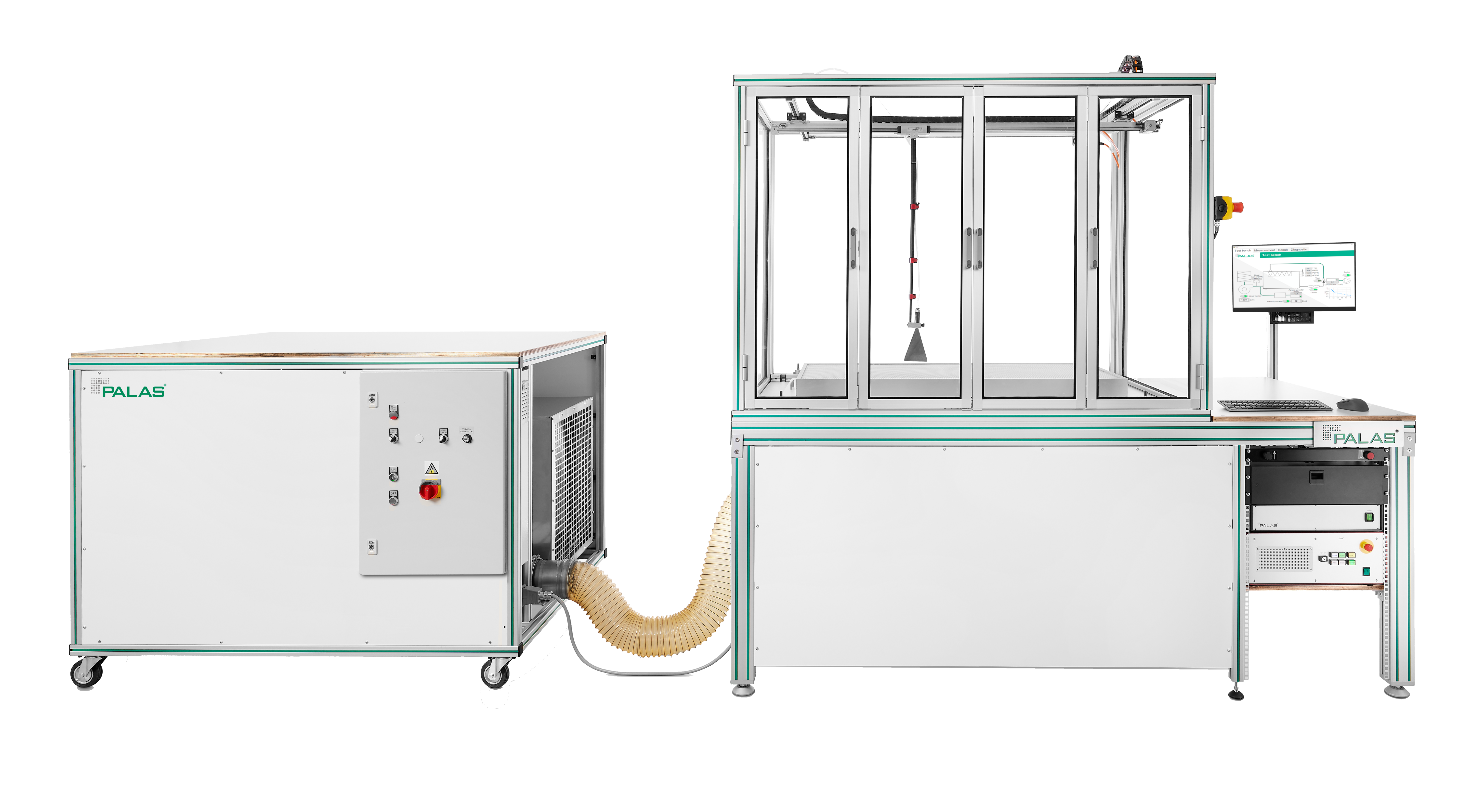

Filter Test Rigs

Filter test systems for the testing of cleanroom filters, motor vehicle passenger compartment filters, compressed air filters, oil separators, vacuum cleaner filters etc.

Applications
  • Quality assurance for oil separators
  • New and further development of oil separators, e.g. coalescence separators, cyclonic separators and other inertia separators, electrofilters and filter combinations, e.g. for
    • Blow-by aerosols
    • Oil mist downstream of compressors
    • Cooling lubricants on machine tools
    • Aerosols for minimal quantity lubrication
Applications
  • Testing of complete filters better than ISO 12500
  • Testing of filter media
  • Determination of the drainage amount during burdening

Applications
  • Emission measurements in accordance with standard EN 60312
  • Measurement of the fraction separation efficiency for the vacuum cleaner with bag and for the vacuum cleaner with HEPA end filter

Palas® has been building and developing module filter test rigs since 1985 and therefore has great know-how to offer in this field. Palas® is currently the market leader and offers the world's widest range of filter test systems.

Palas® can offer complete solutions for a very wide range of filter applications, whether at high temperatures up to 130°C or pressures up to 10 bar.

The Palas® product range offers the world's largest selection of different aerosol generators, dilution systems and state-of-the-art particle measurement technology for particle sizes from 5 nm to 100 µm, which are used as modular, interchangeable individual components as part of the Palas® test systems. Of course, existing testing conduits, e.g. in accordance with Ashrae 52.2 or EN 779, can also be upgraded with Palas® aerosol technology.

With this flexibility testing requirements can be simply and reliably met to suit customer requirements or in order to achieve compliance with the relevant standards.
