Filter Test Rigs » CIF system

CIF 1000 / 2000 / 3000 for motor vehicle passenger compartment filters in accordance with 71460 part 1 and ISO/TS 11155-1

Applications
  • Complete filter test in accordance with DIN 71460 part 1 & ISO/TS 11155 part 1
  • Test of filter media in accordance with DIN 71460 part 1 & ISO/TS 11155 part 1
  • Testing of other complete filters and filter media
Applications
  • Complete filter test in accordance with DIN 71460 part 1 & ISO/TS 11155 part 1
  • Test of filter media in accordance with DIN 71460 part 1 & ISO/TS 11155 part 1
  • Testing of other complete filters and filter media
Applications
  • Complete filter test in accordance with DIN 71460 part 1 & ISO/TS 11155 part 1
  • Test of filter media in accordance with DIN 71460 part 1 & ISO/TS 11155 part 1
  • Testing of other complete filters and filter media

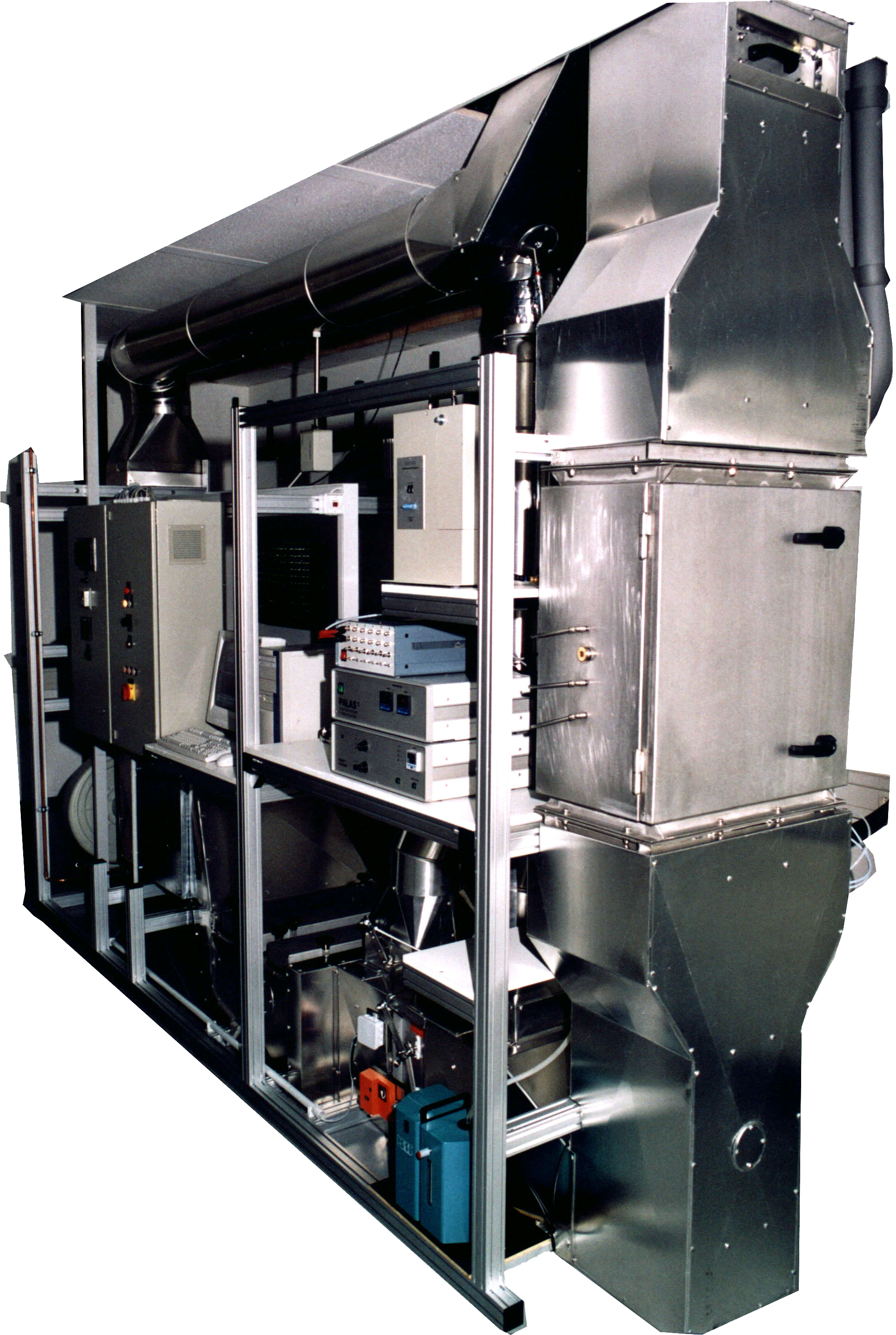

Palas® offers the CIF 1000 / 2000 / 3000 test rig for standard tests on motor vehicle passenger compartment filters in accordance with DIN 71460 part 1 and ISO/TS 11155-1. The difference between the test rigs is, in essence, the measurement device used. On the CIF 1000 the Promo® 1000 is used, on the CIF 2000 the Promo® 2000 and on the CIF 3000 the Promo® 3000.

Differences of CIF models

Test rig
CIF 1000
CIF 2000
CIF 3000
Measurement device
Promo®1000
Promo®2000
Promo®3000
Measurement range
0.12 – 3 µm
0.2 – 10 µm
0.3 – 17 µm
0.6 – 40 µm
0.2 – 10 µm
0.3 – 17 µm
0.6 – 40 µm
0.2 – 10 µm
0.3 – 17 µm
0.6 – 40 µm
Specials
lowest detection limit of 120 nm
LWL-technique therefore minimisation of particle losses in sampling
LWL-technique as well as quasi simultaneous measurement in raw and clean gas with two aerosol sensors
