Protective Mask Test Systems » PMFT System

Palas® enables the test of respiratory masks, better than the standard. Measurement of fractional efficiency in virus size range between 120 nm and 160 nm, total measurement range up to 40 µm

Topseller!
new
Applications
  • Development and production monitoring of half masks
  • Test of total penetration for respiratory masks
  • Exact analysis of filter mask efficiency for e.g., Coronavirus
Topseller!
new
Applications
  • Überprüfung von Vollschutzmaskenfiltern zur Verwendung mit Norm-Filterverschraubungen nach EN 148-1
  • Messung der Gesamtpenetration von Atemschutzmasken
  • Exakte Analyse von Filtermaskeneffizienz für bspw. Coronavirus
  • Medientest für HEPA-Qualität
Topseller!
new
Applications
  • Reliable continuous operation in routine monitoring of half masks
  • Test of total penetration for respiratory masks
  • Exact analysis of filter mask efficiency for e.g., Coronavirus
  • Can be operated as Mas-Q-Check with optional Mas-Q-Head

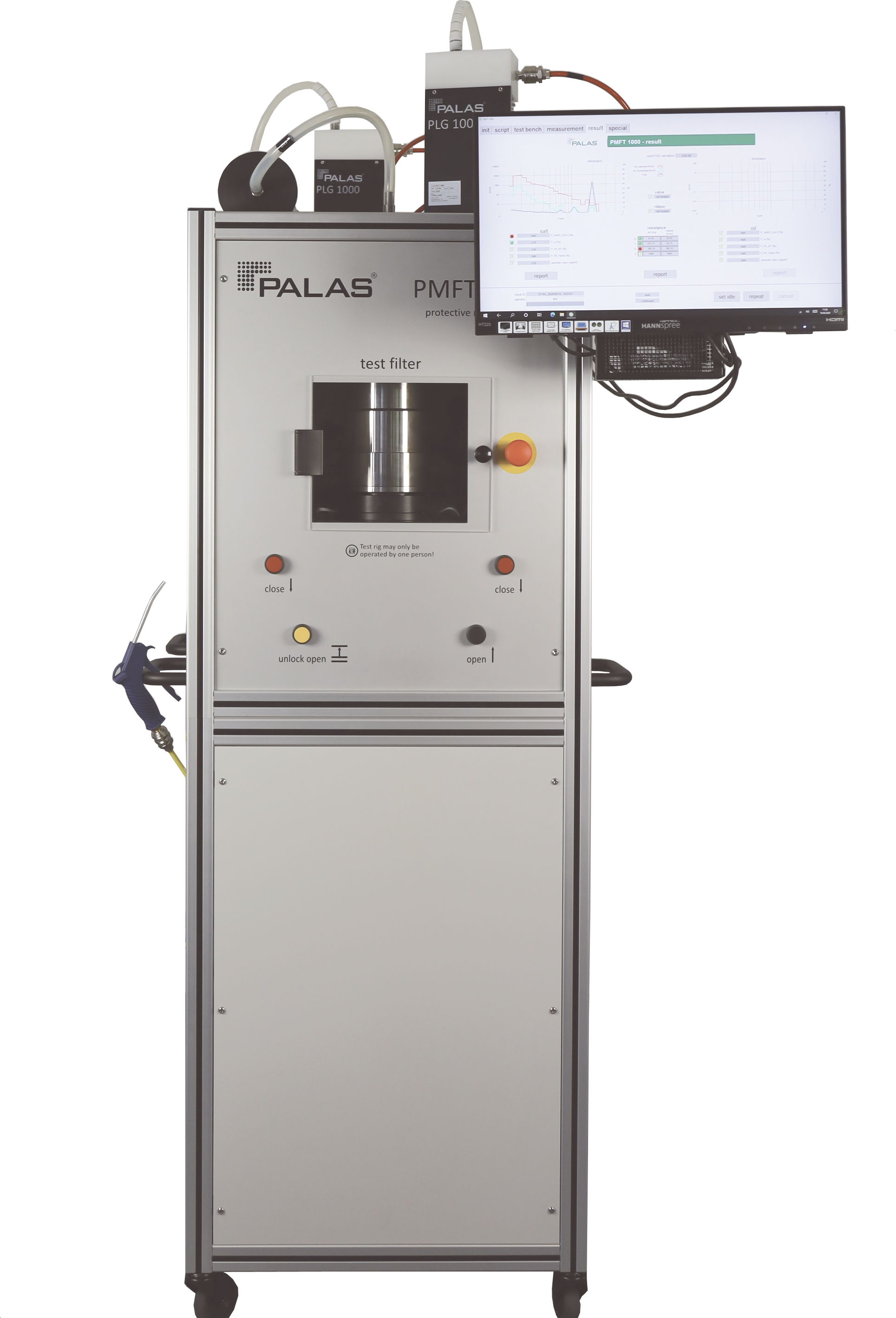

The filter test rigs PMFT System enable a reliable control of masks and filter material. This allows you to effectively ensure the quality of your products.

The PMFT system includes three models for different needs:

  • PMFT 1000 for development and production monitoring of half masks
  • PMFT 1000 M for reliable continuous operation in routine monitoring of half masks
  • PMFT 1000 F as an all-rounder in the testing of almost all mask and filter types
The PMFT Systems does not only measure overall penetration and breathing resistance/pressure drop, but also fractional efficiency in the size range between 100 nm and 5 μm.
Our test instruments test better than required by relevant standards for face masks and full face mask filters:

Relevant Standards for Mask and Filter Testing

Model
Test Application
Measuring Range (Size)
Relevant Standard
Mask Type
Particle-size Dependant Penetration
EN 149
EN 13274-7
GB 2626
42 CFR 84
EN 143
ISO 16900-3
PMFT 1000
Face masks FFP/KN/KP
0.1 - 3 µm
x
x
x
x
PMFT 1000 M
Face masks FFP/KN/KP
0.145 - 5 µm
x
x
x
x
PMFT 1000 F
Full protection mask filter
0.145 - 5 µm
x
x
x
x
x
x
