PMFT 1000 M

PMFT 1000 M for reliable continuous operation in routine monitoring of half masks. Test of total penetration better than the standard, exact analysis of filter mask efficiency from 145 nm to 5 µm

Downloads

PMFT 1000 M: Atemschutzfiltern, Filtermaskeneffizienz

PMFT 1000 M

PMFT 1000 M for reliable continuous operation in routine monitoring of half masks. Test of total penetration better than the standard, exact analysis of filter mask efficiency from 145 nm to 5 µm

Still have questions?

Description

The PMFT 1000 M tests face masks better than the standards EN 149/EN 13274-7 with additional accurate analysis of filter mask efficiency for SARS-CoV-2 (size approximately 120 nm to 160 nm). Both total photometric penetration and fractional efficiency are tested e.g., the efficiency in the whole size range respectively the particle size-dependent penetration.

In addition, the PMFT 1000 M meets the requirements for respirators specified by the CCF (Covid Certified Filter) quality seal .


The PMFT 1000 M is equipped with aerosol generators for measuring penetration with oil and salt. Measurement procedures for quick quality control (short test) or for testing according to standard (exposure test) are supplied.

Operation and automatic printout of the measurement results are therefore easy even for inexperienced users.

The measurement of total penetration and penetration via particle size is carried out with the high-precision aerosol photometer Promo LED 2300.

The size distribution of the test aerosol according to the standard is as follows:

EN 149

Oil: Media diameter 290 nm | Geom. standard deviation 1.85
Salt: Media diameter 70 nm | Geom. standard deviation 2.5

vz5103

42 CFR 84 / GB 2626

Oil: Media diameter 200 nm | Geom. standard deviation 1.6
Salt: Media diameter 55 nm | Geom. standard deviation 1.86


Based on the measurement of the particle penetration via the particle size, the PMFT can also be used to consider the tolerances in the particle size distribution according to EN 13274-7 as min./max. penetration value. In addition, comparative values to other manufacturers are possible (option).

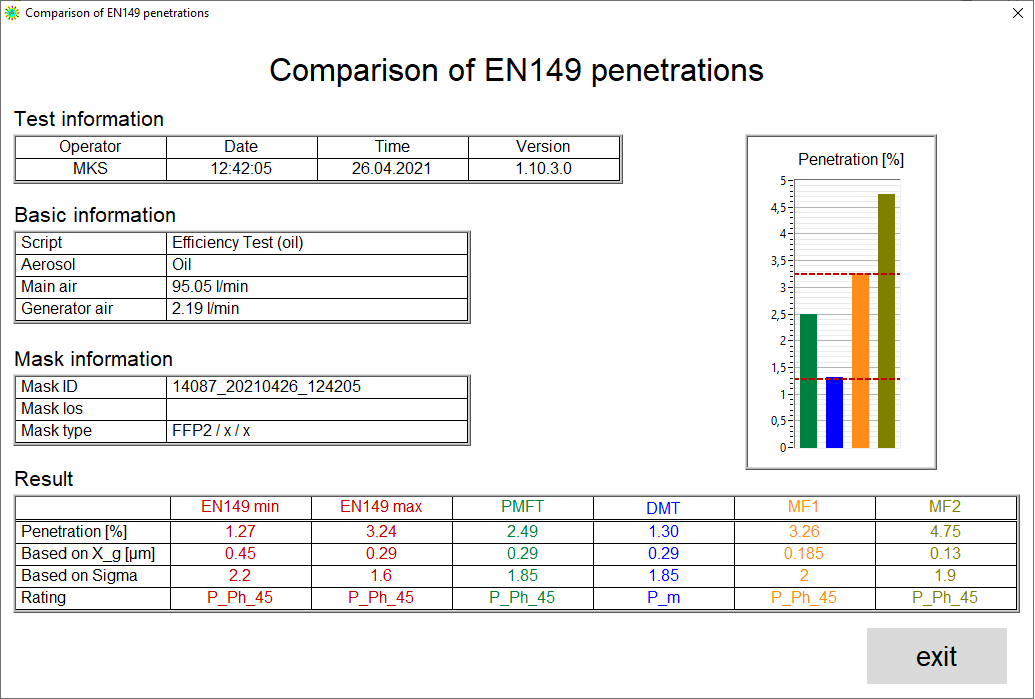

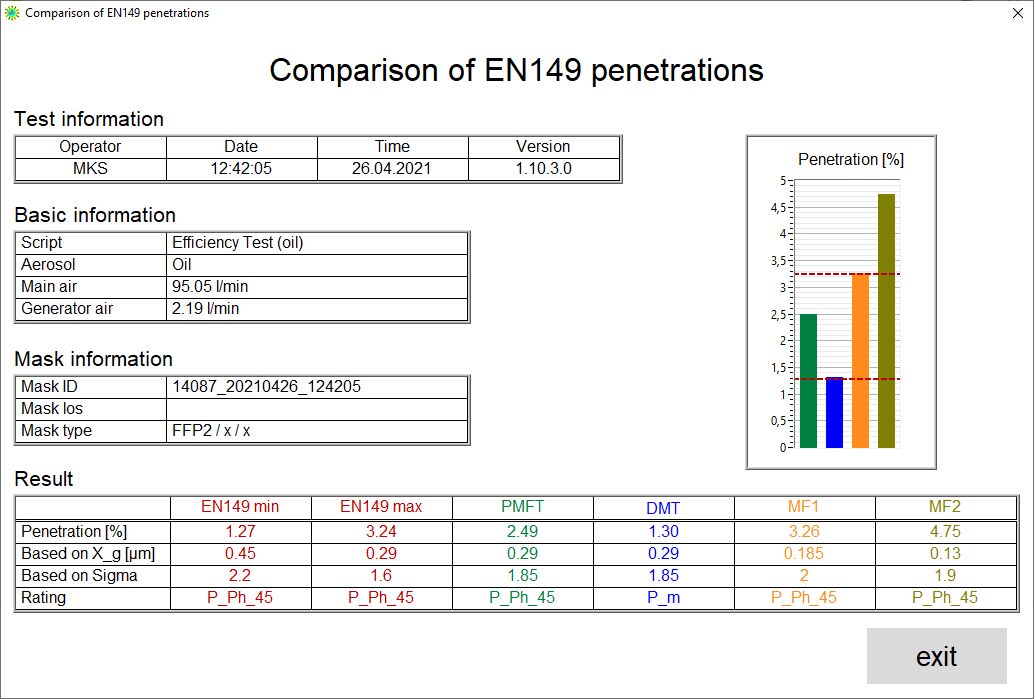

Comparison of EN 149 penetrations.PNG

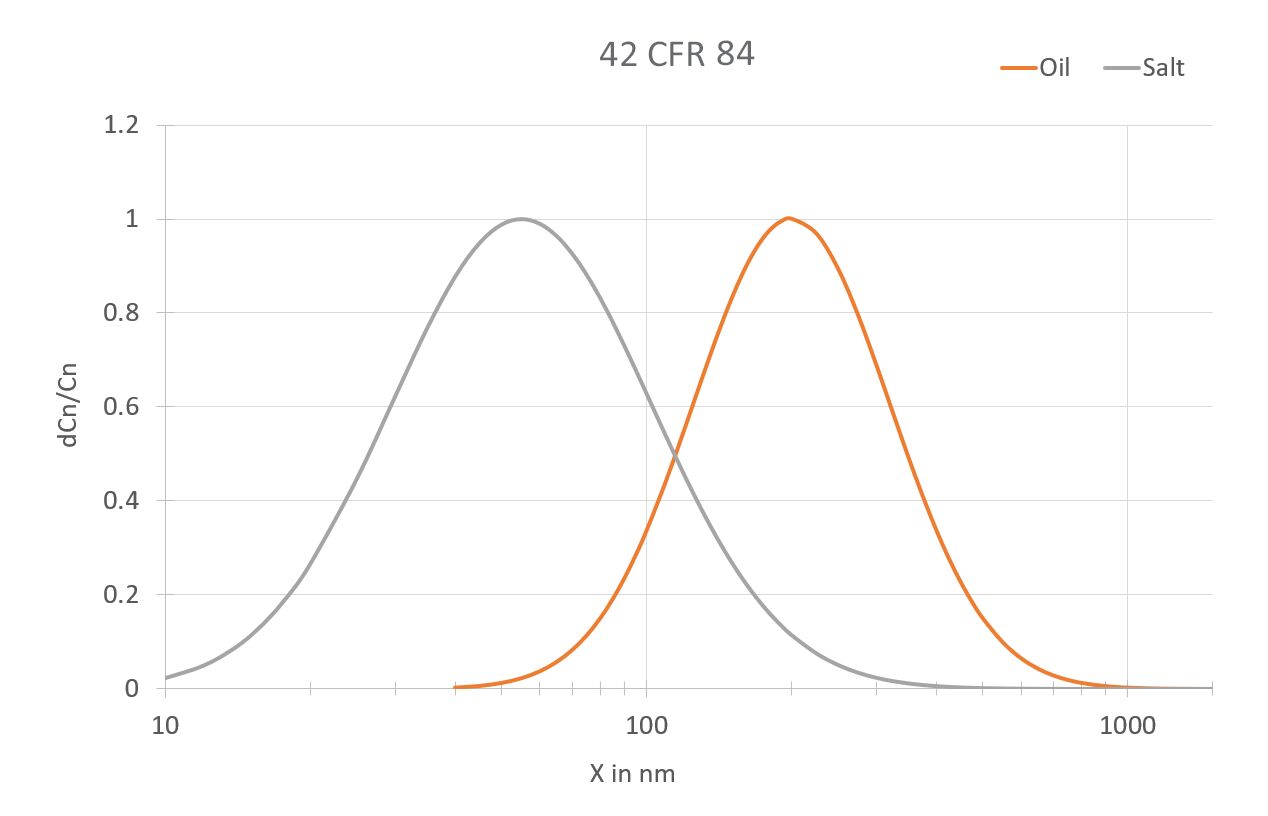

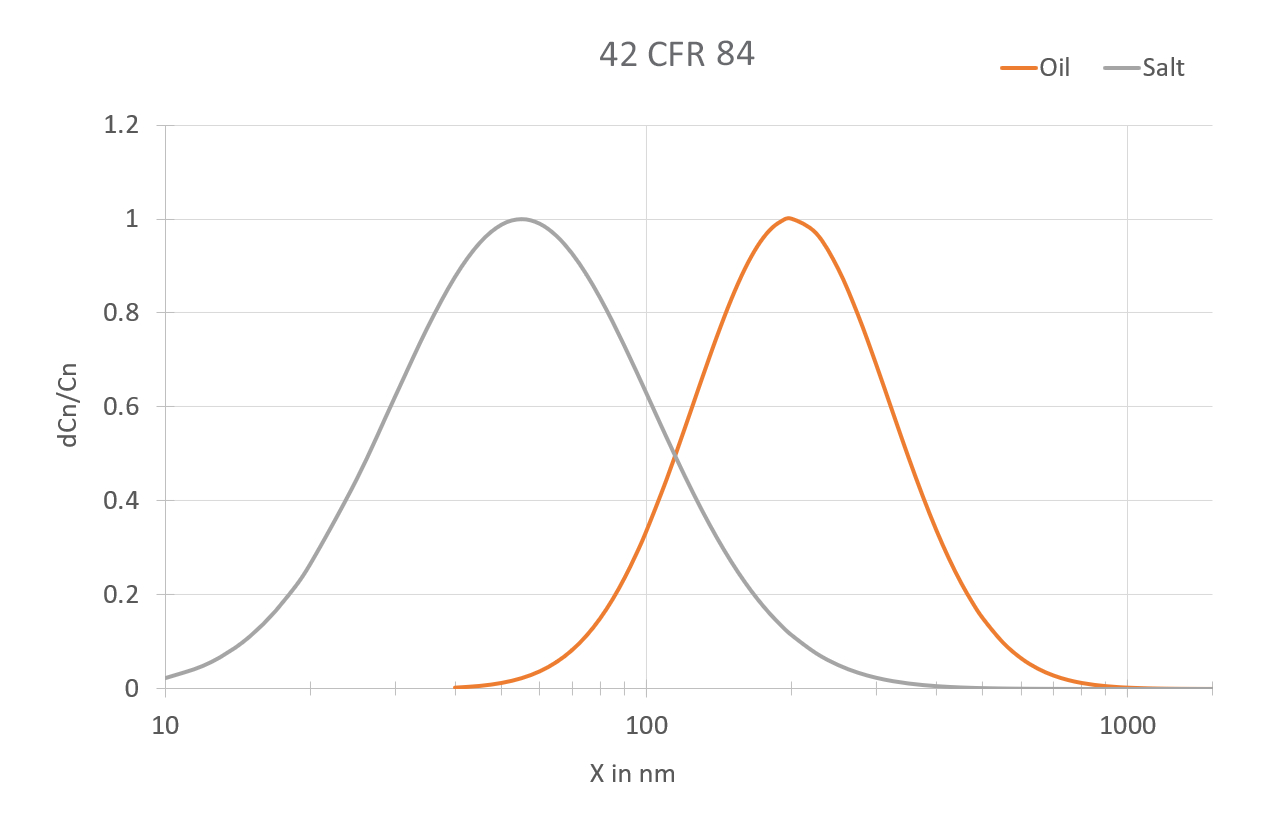

The comparison with other standards (42CFR84/NIOSH) is also easy with the 42CFR84 upgrade KIT.

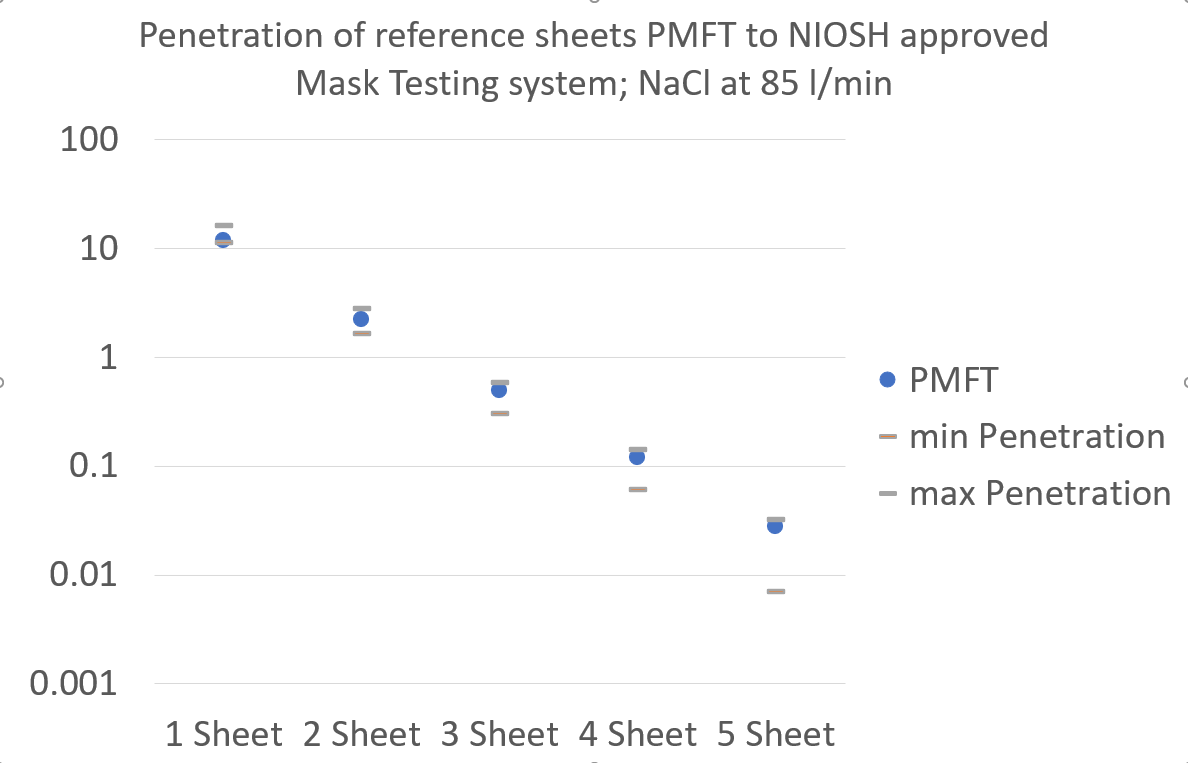

Comparison Niosh.PNG

Overview of standards for face mask penetration testing

EN 149
EN 13274-7
EN 13274-7
GB 2626
GB 2626
42 CFR 84
42 CFR 84
Aerosol
see EN 13274-7
NaCl
PaO
NaCl
PaO/DOP
NaCl
DOP
Mean diameter
see EN 13274-7
0.06 – 0.1 µm
0.29 – 0.45 µm
0.055 – 0.095 µm
0.165 – 0.205 µm
0.055 – 0.095 µm
0.165 – 0.205 µm
Standard deviation
see EN 13274-7
2 – 3
1.6 – 2.2
< 1.86 (by additional software module)
< 1.6 (by additional software module)
< 1.86 (by additional software module)
< 1.6 (by additional software module)
Concentration
see EN 13274-7
4 –12 mg/m³
15 – 25 mg/m³
< 200 mg/m³
(50 mg/m³) < 200 mg/m³
< 200 mg/m³
< 200 mg/m³
Discharge
-
-
-
required
required
required
required
Air flow
see EN 13274-7
95 l/min
95 l/min
85 ± 4 l/min
85 ± 4 l/min
85 ± 4 l/min
85 ± 4 l/min
Temperature
see EN 13274-7
22  ± 3 °C
-
25 ± 5 °C
25 ± 5 °C
25 ± 5 °C
25 ± 5 °C
Rel. humidity
see EN 13274-7
< 40 %
-

20 – 40 %

(by compressed air)

-

20 – 40 %

(by compressed air)

20 – 40 %

(by compressed air)

Measurement device
see EN 13274-7

Sodium flame photometer

Light scattering photometer

particle detector

particle detector

Light scattering photometer

Light scattering photometer

Measuring time
see EN 13274-7
30 s
30 s

lowest eff. during loading

lowest eff. during loading

lowest eff. during loading

lowest eff. during loading

Pause time
see EN 13274-7
180 s
180 s

lowest eff. during loading

lowest eff. during loading

lowest eff. during loading

lowest eff. during loading

Exposition
120 mg
120 mg
120 mg

200 ± 5 mg

200 ± 5 mg

200 ± 5 mg

200 ± 5 mg

PMFT remarks

O.K.

O.K.

O.K.

O.K. with upgrade KIT

O.K. with upgrade KIT

O.K. with upgrade KIT

O.K. with upgrade KIT

Benefits

  • Test rig working principle better than EN 149 and EN 13274-7
  • Equivalent to GB 2626, 42 CFR 84 and ASTM 2299-3 by additional software option
  • Test of community masks equivalent to CWA 17553
  • Meets the requirements for respirators specified by the CCF (Covid Certified Filter) quality seal
  • Includes two aerosol generators for NaCl and for oil
  • Testing of fractional efficiency, e.g., efficiency in whole size range of 145 nm up to 40 µm
  • Exact analysis of filter and filter mask efficiency for SARS-CoV-2 (size approx. 120 nm up to 160 nm). Efficiency also displayed at 145 nm
  • Future proof: Works with any kind of aerosol without adjustments
  • Further measurement of differential pressure, e.g., as well within different face velocities to simulate test of breathing resistance
  • Face velocity adjustable between 1.5 – 70 cm/s
  • Product capable of fast quality assurance and continuous optimization in R&D (display of size distribution)
  • Individual face mask adapter for your product
  • Attractive two years maintenance package for availability of test rig
  • Can be operated as Mas Q-Check with optional Mas-Q-Head

The software extension additionally offers:

  • Display of penetration results of the entire tolerance range of the size distribution according to EN 13274-7
  • Allows the comparison of different test institutes and test systems
  • Facilitates certification
  • Shows wide range of standards. Depending on the test operation – i.e., particle size distribution of the test aerosol – one and the same mask can perform very well or fail the test

Datasheet

Measuring range (total penetration) 0.0005 - 100 %
Measurement range (size) 0.145 – 40 µm
Volume flow 1 – 27 m3/h- pressurized operation
Installation conditions +10 – +40 °C
Inflow velocity 1.5 – 70 cm/s (others on request)
Differential pressure measurement 0 – 1,200 Pa
Aerosols Salts (e.g. KCl, NaCl), liquid aerosols (e.g. DEHS), latex particles (PSL)
Compressed air supply 6 – 8 bar
Test area of the medium 100 cm2
Dilution factor 1:27
Power supply 115 – 230 V, 50/60 Hz
Test conditions according to standard +19 – +23 °C
Dimensions Approx. 1,800 • 600 • 900 mm (H • W • D)

Applications

  • Reliable continuous operation in routine monitoring of half masks
  • Test of total penetration for respiratory masks
  • Exact analysis of filter mask efficiency for e.g., Coronavirus
  • Can be operated as Mas-Q-Check with optional Mas-Q-Head

Downloads

Brief Description
Brief product description in two-pages as PDF
Product Description
Detailed product description as PDF
Palas Announcement: Comparative measurements of the filter media test rig PMFT with test devices of TÜV NORD
Announcement: Comparative measurements of the filter media test rig PMFT with test devices of TÜV NORD (326 kByte)
