The MAG 3000 operates based on the Sinclair-LaMer principle (1943). It comprises a core source to generate condensation cores with a particle diameter of approx. 85 nm, a vaporizer to vaporize the particle-forming material, a reheating unit, and a condensation flue, in which the particle-forming material condenses on the condensation core. The condensation process here is heterogeneous.
Aerosol generator for the generation of monodisperse and uncharged droplets
The centerpiece of the MAG 3000 is the core source developed by Palas® with bypass technology. No drying system!
Fig. 1: Setup of Sinclair-LaMer aerosol generator

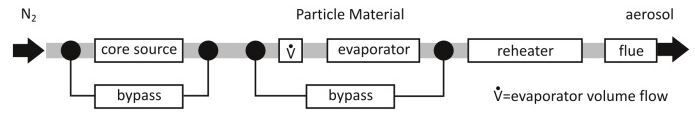

Fig. 2: Setup of MAG 3000 aerosol generator
The new core source atomizes approx. 20 mL saline solution in only 10 hours and requires no drying system due to the very small droplets.
Conventional Sinclair-LaMer generators, including past generators by Palas® GmbH, use a so-called Collison atomizer. The concentration constancy, high mass flow, and the resulting need for a drying system did not meet our quality requirements concerning reliability and easy operation.
Startup and particle size adjustment
1. Temperature change in the vaporizer (Fig. 3)
Suppose the temperature is increased in the vaporizer. In that case, more vapor is generated per period, making more particle material available to each core at the same core concentration, increasing the particle diameter. This process stabilizes within a few minutes.
2. Bypass around the vaporizer (Fig. 3)
This bypass enables the particle size to be rapidly changed by a factor of approx. 2.5 in approx. 10 seconds. Opening this bypass valve releases less vapor from the vaporizer, decreasing the particle diameter.
3. Bypass around the core source (Fig. 3)
Opening the bypass valve on the core source means fewer cores reach the vaporizer, generating larger particles in approx. 10 seconds. This bypass is used to generate particles > 5 µm.
4. The MAG 3000 meets all definitions concerning monodispersity as per VDI 3491 - page 4.
Fig. 4 presents the tight particle size distributions able to be generated with the MAG 3000.
Fig. 3 Monodisperse particle size distributions
Fig. 4: Example of a MAG 3000 calibration curve for DEHS
Your special advantages
- Particle size adjustable from approx. 0.2 to 8 µm for DEHS (other particle materials upon request)
- Reproducible particle size adjustment (uncharged aerosols)
- Minimal use of the saline solution, approx. 20 mL in 10 h
- No drying system, no silica gel
- Reliable bypass adjustments for the evaporator and core source
- Rapid particle size modification up to factor 2.5 within approx. 10 seconds using the bypass adjustments
- Robust design
- Reliable function, high reproducibility
- Low maintenance
- Reduces your operating expenses
Individual solutions for various industries
- Calibrating particle measurement devices
- Comparison of device parameters about particle size:
- Resolution capacity
- Classification accuracy
- Lower counting efficiency rate
- Upper counting efficiency rate
- Border zone error
- Inhalation tests
- Tracer particles/flow visualization
- Filter inspection
- Volume flow
- 3.5 – 4.5 l/min
- Approx. 22 kg
- Particle material
- DEHS, others on request
- Maximum particle number concentration
- 106 particles/cm3
- Carrier/dispersion gas
- Aerosol outlet connection
- Outlet 1: Øinside = 8 mm, Øoutside = 10 mm; Outlet 2: Øinside = 18 mm, Øoutside = 20 mm
- Power supply
- 115 – 230 V, 50/60 Hz
- Mean particle diameter (number)
- 0.2 – 8 µm (DEHS)
- Geometric standard deviation (number)
- < 1,15
- Filling quantity
- 300 ml (DEHS), 70 ml (salt solution)
- 610 • 300 • 300 mm (H • W • D)
