Filter Media Test Rigs » MFP system

Modular filter media testing system for quick determination of fraction separation efficiency, burden and pressure loss in accordance with the standards and based on customer requirements

Applications
  • For filter media and small mini-filters
  • product development and during production monitoring
  • Fast and cost efficient testing of fractional efficiency with dust, oil or salt based on ISO 11155-1 (cabin air filters), ISO 5011 (engine pre-air filters), EN 779/ Ashrae 52.2/ ISO 16890 (room air filters),
  • Within the version MFP 100 HEPA measurement of MPPS of HEPA/ ULPA filter media based on EN 1822 and ISO 29463-3
Applications
  • For filter media and small mini-filters
  • product development and during production monitoring.
  • Testing based on ISO 11155-1 (cabin air filters),
  • Testing based on ISO 5011 (engine pre-air filters),
  • Testing based on ISO 16890 (room air filters),
  • EN 1822-3 (HEPA filters)
  • CEN EN 143 and other standards in various versions.
Applications
  • For filter media and small filter elements
  • product development/ during production monitoring.
  • Testing based on ISO 11155-1 / DIN 71460-1 (cabin air filters)
  • Testing based on ISO 5011 (engine pre-air filters)
  • Testing based on ISO 16890 (room air filters)
  • Other standards in various versions
  • Fully automatic measurement of the fractional efficiency, the pressure drop curve, the dust holding capacity and the gravimetrical efficiency
  • International comparable results due to the high distribution of the system
Applications
  • For filter media and small filter elements
  • product development/ during production monitoring.
  • Testing based on ISO 11155-1 / DIN 71460-1 (cabin air filters)
  • Testing based on ISO 5011 (engine pre-air filters)
  • Testing based on ISO 16890 (room air filters)
  • Other standards in various versions.

With the MFP series, Palas® offers high-precision testing systems for the development and quality control of filter media. From HEPA qualities with high separating efficiency to pre-filtering qualities, the test rigs in the MFP series deliver clear, fast and therefore cost-effective testing results.

Based on the test requirements specified in standards like EN779, ASHRAE 52.2, DIN 71460-1, ISO TS 11155-1, ISO 5011, EN 1822, ISO 29463 or based on special practical requirements, the MFP test rigs are equipped with different systems for aerosol generation, electrical discharge of aerosols, aerosol dilution and air humidifiers.

The clear determination of the fraction separation efficiency is performed highly accurately using the aerosol spectrometers Promo® 1000, 2000 and 3000. The wide range of interchangeable welas® sensors allows the measuring system to be perfectly fine-tuned even for particle concentrations up to 1 g/m3 with SAE dust in accordance with ISO 12103-1.

The MFP series is used with great success all around the world.

Differences of MFP models

Test rig

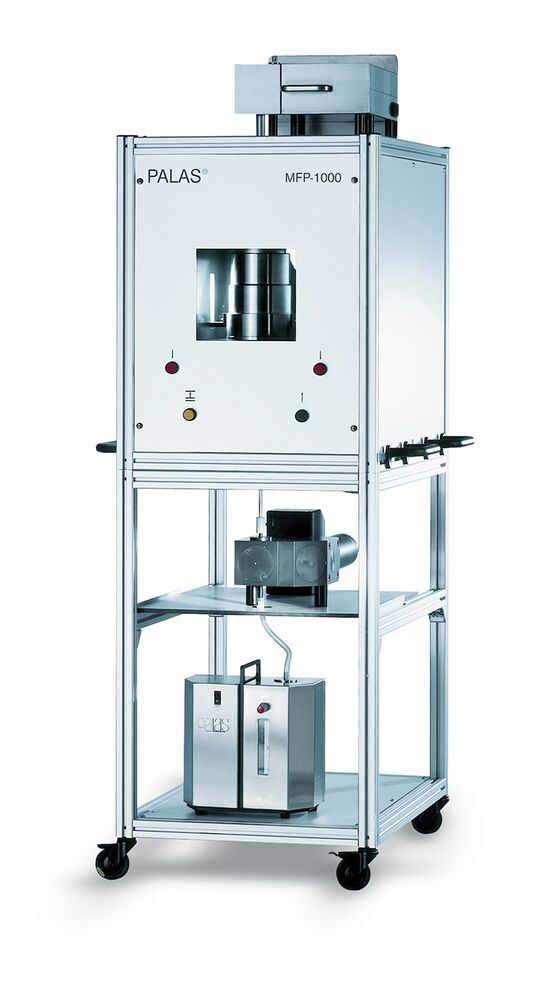

MFP 1000
MFP 2000

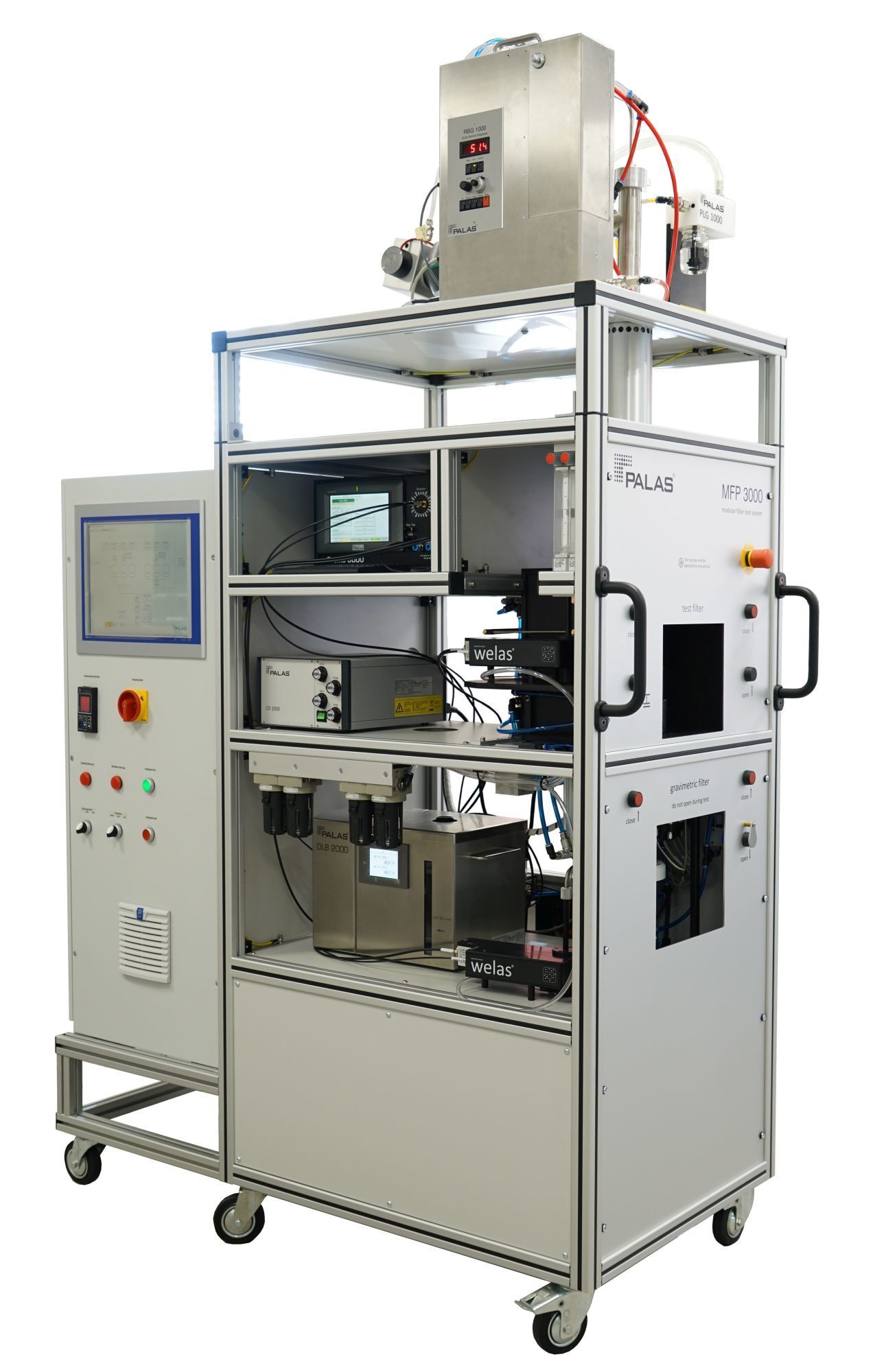

MPF 3000
MFP 4000
Measurement device
welas®digital 1000
welas®digital 2000
welas®digital 3000
two Promo®2000
Measurement range
0.12 – 3 µm
0.2 – 10 µm
0.3 – 17 µm
0.6 – 40 µm
0.2 – 10 µm
0.3 – 17 µm
0.6 – 40 µm
0.2 – 10 µm
0.3 – 17 µm
0.6 – 40 µm
0.2 – 10 µm
0.3 – 17 µm
0.6 – 40 µm
Specials
pressure mode
pressure mode
suction mode and quasi simultaneous measurement with one measurement device and two aerosol sensors
suction mode and simultaneous measurement with two measurement devices and one aerosol sensor for each device
Maximum concentration
up to 500 mg/m³
up to 500 mg/m³
up to > 1000 mg/m³
up to > 1000 mg/m³
