CD 2000

Fig. 1: CD 2000

The bipolar corona discharge CD 2000 is used in order to neutralize the charge of a dust or liquid aerosol or even to electrically charge it, as required. For this purpose, a current is set on the positive and negative high voltage source so high that it is still fully conducted through the corona discharge generated at the tip in the corona chamber, but no (or few) sparks are generated. This current is programmed via the current limitation of the HV power supplies. The voltage limitation is set slightly higher than is necessary for the current determined, such that this current flows under all circumstances (temperature, condition of the electrode). The positive and the negative high voltage supplies and the CD 2000 are independent of one another and are independently adjustable.

Functional principle

Funktionsprinzip Corona-Entladung.JPG

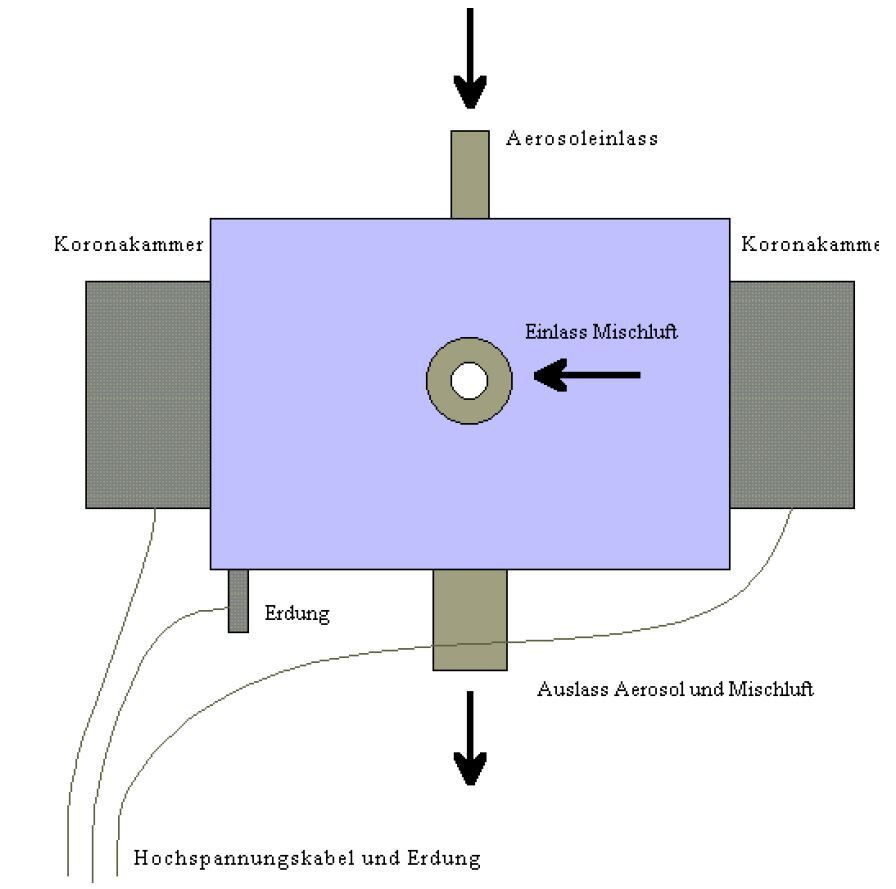

Fig. 2: Functional principle of corona discharge

A dust or liquid aerosol is supplied at the aerosol inlet. The particles in this aerosol have to be discharged. The mixed air inlet is fed with dry pressurized air. The mixed flow air is passed through two ionization chambers. In these chambers the air is enriched with ions from the corona discharge with positive and negative high voltage. The aerosol air stream and the mixed air enriched with ions are mixed in a small mixing chamber. The charges of the particles in the aerosol are neutralized by the ions in the mixed air. This takes a certain time. That means that the complete discharge only takes place in the volume after CD 2000 outlet (e.g in the tubing system or in the upper part of a filter holder). An approximate value for the dwell time is 0.5 seconds. A satisfactory discharging effect was found in configurations that ensure a dwell time of at least 0.2 seconds.

CD 2000 measurement data

CD 2000.png (2)

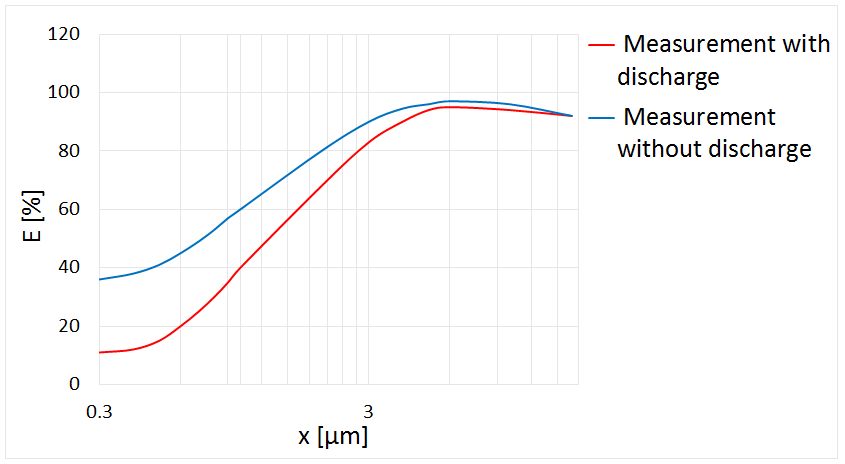

Fig. 3: Fractional separation efficiency with and without CD 2000

With a filter medium or filter (exception: Electret filter medium or Electret filter) the fractional separation efficiency is normally measured higher without a discharge unit than with one.

Attention

Many standards, e.g. EN 779 for room filters, require the use of a discharge unit.

Benefits

  • No operation license required for radioactive instruments
  • Bipolar discharge through negative and positive ions
  • Applicable for solid and liquid aerosols
  • Robust design
  • Simple operation
  • Reliable function
  • Low maintenance
  • Reduces your operating expenses

Datasheet

Reported data Voltage: 0 – 6,000 V ≙ 0 – 10 VPwer: 0 – 1,000 µA ≙ 0 – 10 V
Power consumption

50 W
Aerosol outlet connection
Aerosol and fed mixed air, Øinside = 12 mm,
Øoutside = 16 mm
Volume flow (mixed air) Type A: for 2 – 18 m3/h, type B: for 3 – 36 m3/h
Volume flow (suction flow)

0 – 4 m3/h
Power supply 115 – 230 V, 50/60 Hz
Mixed air connection
Cleaned pressurized air, type A: Øinside = 6 mm, Øoutside = 8 mm, type B: Øinside = 13 mm
Operation principle Ionization with corona
Mains fuse

F 3,15 A, 250 V
Aerosol inlet connection Øinside = 6 mm,Øoutside= 8 mm
Special features
Positive and negative high voltages are provided by two independent power supplies, maximum voltage: ± 6,000 V, maximum power: ± 1,000 µA

Applications

  • Discharge of electrically charged aerosols
  • Aerosol research
  • Filter testing

Downloads

Brief Description
Brief product description in two-pages as PDF
Product Description
Detailed product description as PDF
