Aerosol Spectrometers » Promo® system

Aerosol spectrometer system for process measurement technology and monitoring applications with continuous measurement

Applications
  • Determination of the separation efficiency of car interior filters, engine air filters, room air filters, compressed air filters, vacuum cleaner filters, cleanable filters, electrostatic precipitators, oil separators, cooling lubricant separators, wet scrubbers, cyclones and other separators
  • Isothermal and isobaric particle size and quantitative determination, for instance in the automobile, chemical, pharmaceutical and food industries
  • Analysis of fast, transient processes
  • Inspection of smoke detectors
  • Particle formation for cloud formation
  • Emission measurements
  • Immission measurements

Applications
  • Emission monitoring of installations
  • Control of grinding and classification processes
  • Monitoring of production processes in the food, pharmaceuticals and chemicals industries
  • Testing of complete filters, inertial and wet separators or electrostatic precipitators
Applications
  • Emission monitoring of installations
  • Control of grinding and classification processes
  • Monitoring of production processes in the food, pharmaceuticals and chemicals industries
  • Testing of complete filters, inertial and wet separators or electrostatic precipitators

The Promo® aerosol spectrometer system was specially developed for continuous process monitoring and is based on the welas® digital technology. Besides particle size distribution and particle concentration, up to 36 static distribution parameters are continuously measured with a minimum temporal resolution of 1 s.

Unique are up to four measuring ranges in only one device:

  • 0.12 µm – 3.5 µm (additionally in welas® 1000 and Promo® 1000)
  • 0.2 µm – 10 µm
  • 0.3 µm – 17 µm
  • 0.6 µm – 40 µm
  • 2 µm – 100 µm (additionally for sensors 2300 and 2500).
welas® digital system and Promo® system are famous for up to 128 size channels per measuring range and a concentration range from < 1 particle/cm3 to 106 particles/cm3.

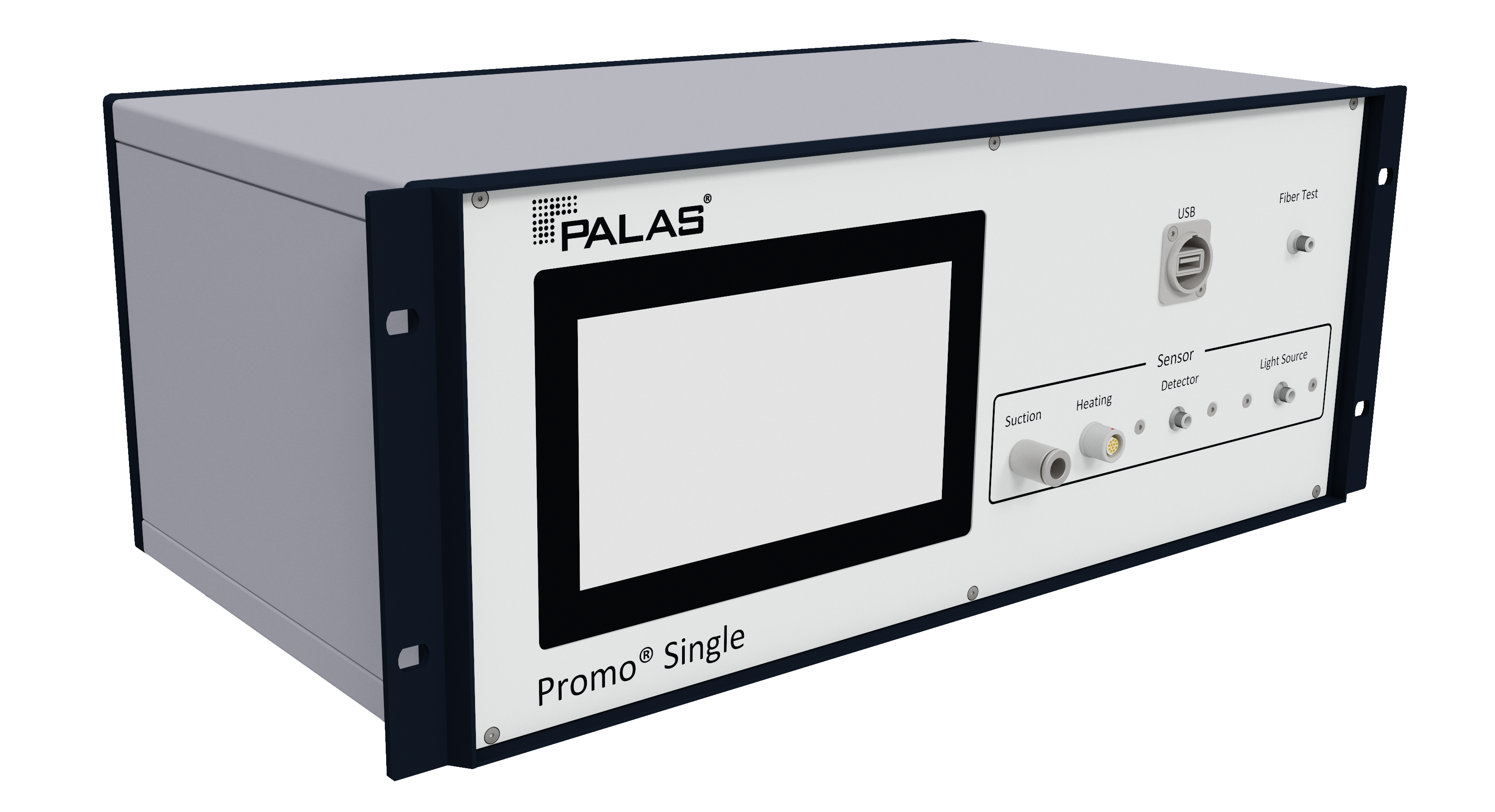

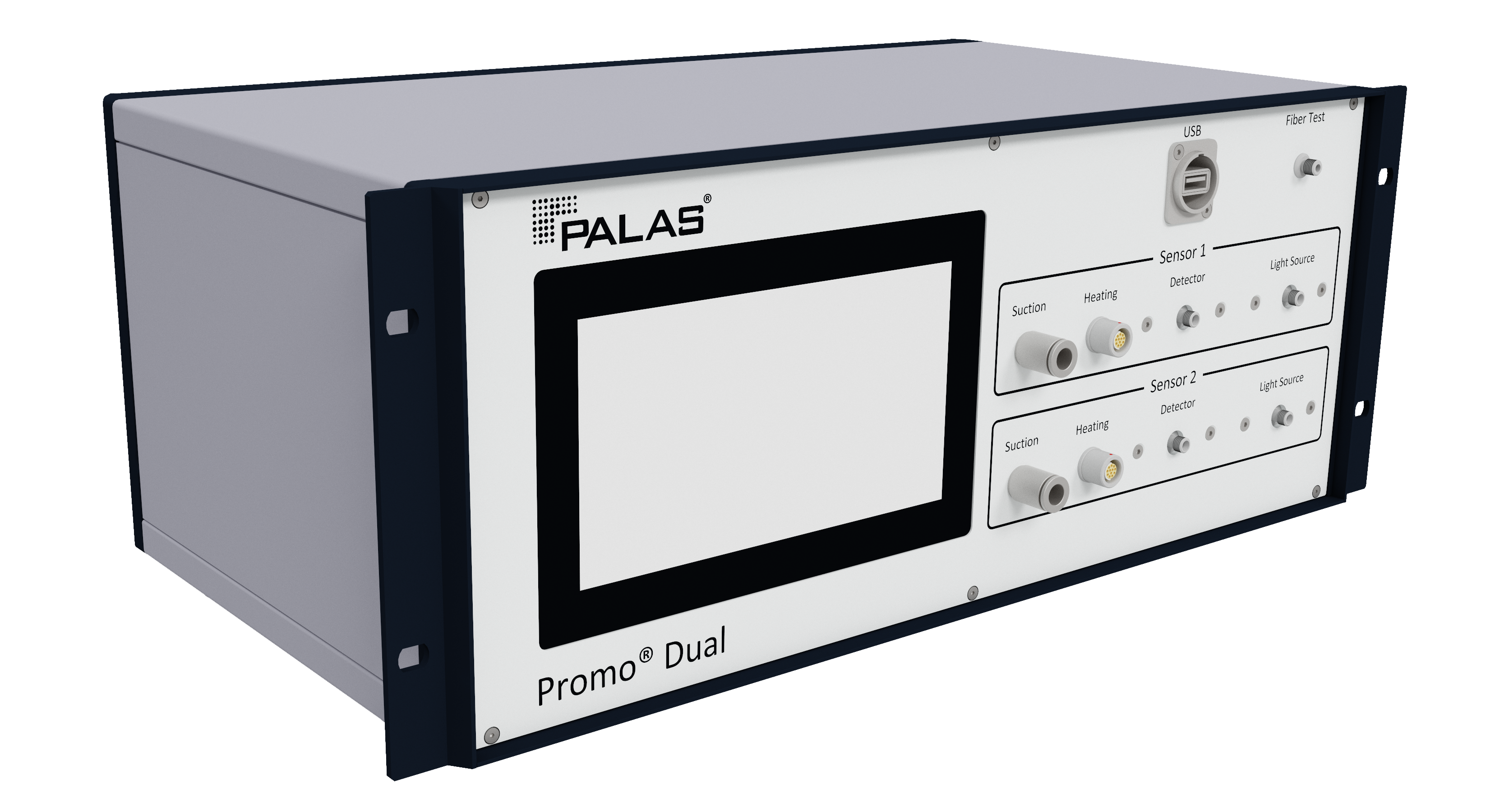

Promo® is a standalone measuring device equipped with an easy-to-operate integrated PC with touchscreen.

By means of various interfaces, such as Modbus, Promo® can be integrated in process control systems and operated with external software.

Unique in the world: The broad spectrum of easily exchangeable welas® aerosol sensors enable perfect matching of the measurement technology with the particle spectrum (120 nm to 100 µm) to be measured, in particle concentrations of < 1 particle/cm3 up to 106 particles/cm3, also in overpressure up to 10 barg and in temperatures of -120 °C to 470 °C.

Calibration can be performed on-site independently by the customer!

Differences of Promo®models

  Promo® 1000
Promo® 2000
Promo_2000_display und registered_03_2013_neu_klein.jpg
Promo® 3000
Promo 3000H freigestellt_zugeschnitten.jpg
Measurement range (size) 0,12 µm – 3,5 µm
0,2 µm – 10 µm
0,3 µm – 17 µm
0,6 µm – 40 µm
0,2 µm – 10 µm
0,3 µm – 17 µm
0,6 µm – 40 µm
2 µm – 100 µm
0,2 µm – 10 µm
0,3 µm – 17 µm
0,6 µm – 40 µm
2 µm – 100 µm
Measurement range (number CN) < 5 • 105 particles/cm3 < 1 • 106 particles/cm3 < 1 • 106 particles/cm3
Time resolution Up to 1 s Up to 1 s Up to 1 s
Volume flow 5 l/min, 1.6 l/min 5 l/min 5 l/min
Light source Xenon
Hochdrucklampe 75 W
Xenon arc lamp 35 W Xenon arc lamp 35 W
Software PDControl, FTControl PDControl, FTControl, PDAnalyze PDControl, FTControl, PDAnalyze
