AGF 2.0 iP

AGF 2.0 iP: Flüssigkeitsvernebler mit Zweistoffdüse und Zyklon (dp_max = 2 µm) nach VDI 3491-1 und -2. Generiert konstante Partikelrate und definiertes Partikelspektrum.
AGF series aerosol generator with built-in pump

The AGF 2.0 iP aerosol generator can atomize liquids with a binary nozzle.

Unlike the other versions in the AGF series, the AGF 2.0 iP has a built-in pump that generates volume flow, making an additional compressed air connection unnecessary to operate the device.

Norms and certificates

National and international standards

ISO 14644 VDI 2083

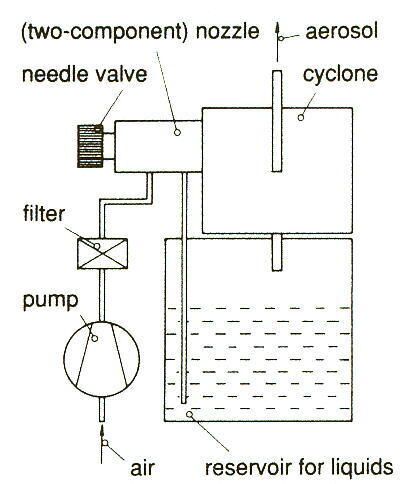

Operation principle
Benefits

Your special advantages

  • No compressed air required during operation
  • Exact adjustment of the operating parameters
  • Number concentration (CN) can be varied by the factor of 10
  • Particle size distribution remains virtually constant if CN is modified
  • Number distribution maximum is within the MPPS range
  • Virtually no power losses
  • Optimal concentration, no coagulation losses
  • Resistant to numerous acids, bases, and solvents
  • Robust design, stainless steel housing
  • Easy to operate
  • As opposed to the collision method, AGF 2.0 does not generate particles > 2 µm thanks to its cyclone.
  • Because the AGF generates virtually no droplets > 2 µm, the consumption of materials is very low, thus ensuring a long dosing time.
  • With the use of DEHS, the mean particle size is within the MPPS range for HEPA/ULPA filters
Applications

Individual solutions for various industries

  • Clean room technology
    • Acceptance tests and leak tests as per ISO 14644 and VDI 2083
    • Leak tests, fit testing
    • Recovery tests
  • Filter testing, quality control
    • Filter cartridges
    • Car interior filters
    • Filter media, particulate air filters
    • Aerosol generation for MPPS determination of HEPA/ULPA filters
  • Tracer particles
    • Inhalation experiments
    • Optical flow measurement procedures with positive pressure values of up to 10 bar (model version AGF 2.0 D)
    • LDV
  • Calibration of counting particle measurement methods
    • Nebulization of latex suspensions < 1 µm
  • Smoke detector test
Do you have any further questions?
Please do not hesitate to contact us.
Technical features

In detail

Volume flow
12 – 14 l/min
Weight
Approx. 15 kg
Particle material
DEHS, DOP, Emery 3004, paraffin oil, other non-resinous oils
Dosing time
> 24 h
Mass flow (particles)
< 2 g/h (DEHS)
Compressed air connection
No
Aerosol outlet connection
Øinside = 6 mm, Øoutside = 8 mm
Power supply
115 – 230 V, 50/60 Hz
Mean particle diameter (number)
0.25 µm
Particle diameter (maximum)
2 µm
Filling quantity
300 ml
Dimensions
325 • 300 • 175 mm (H • W • D)
Downloads

More information about AGF 2.0 iP

Brief Description

Brief product description in two-pages as PDF


Product Description

Detailed product description as PDF
